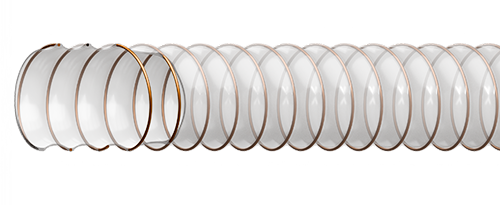

POLYURETHANE DUCTING - MEDIUM C
Construction
Wall
Polyester Polyurethane
Spiral
Spring Steel Wire
Properties
Extremely flexible, Light in Weight, High abrasion resistant, Microbe - resistance, Good chemical resistance, Good UV and ozone resistance, Oil / petroleum proof, Increased vacuum and pressure resistance, Anti static if connected with helical wire
Application
Suction & transport of abrasive solids, liquids, fine grained particles, such as dust and powder. Used in extraction of oil mist, paper & textile fibers
| Item Code |
ID
|
WT
|
VP
|
BR/r
|
W
|
|
| inch | mm | mm | bar | mm | kg/m | |
| PH130060AANT | 130 | 0.60 | 0.08 | 90 | 0.981 | |
| PH600060AANT | 24 | 600 | 0.60 | 0.01 | 500 | 4.083 |
| PH500060AANT | 20 | 500 | 0.60 | 0.01 | 400 | 3.406 |
| PH450060AANT | 18 | 450 | 0.60 | 0.01 | 350 | 3.068 |
| PH400060AANT | 16 | 400 | 0.60 | 0.02 | 270 | 2.785 |
| PH350060AANT | 14 | 350 | 0.60 | 0.02 | 250 | 2.440 |
| PH300060AANT | 12 | 300 | 0.60 | 0.03 | 200 | 2.423 |
| PH279060AANT | 11 | 279 | 0.60 | 0.03 | 185 | 2.256 |
| PH250060AANT | 10 | 250 | 0.60 | 0.04 | 170 | 2.024 |
| PH220060AANT | 220 | 0.60 | 0.05 | 150 | 1.820 | |
| PH200060AANT | 7.7/8 | 200 | 0.60 | 0.05 | 135 | 1.785 |
| PH180060AANT | 7 | 180 | 0.60 | 0.05 | 120 | 1.642 |
| PH160060AANT | 160 | 0.60 | 0.06 | 110 | 1.463 | |
| PH152060AANT | 6 | 152 | 0.60 | 0.06 | 100 | 1.116 |
| PH150060AANT | 150 | 0.60 | 0.06 | 97 | 1.096 | |
| PH140060AANT | 5.1/2 | 140 | 0.60 | 0.08 | 95 | 0.989 |
| PH032060AANT | 1.1/4 | 32 | 0.60 | 0.30 | 25 | 0.231 |
| PH127060AANT | 5 | 127 | 0.60 | 0.08 | 85 | 0.966 |
| PH120060AANT | 120 | 0.60 | 0.08 | 80 | 0.914 | |
| PH110060AANT | 110 | 0.60 | 0.08 | 75 | 0.840 | |
| PH102060AANT | 4 | 102 | 0.60 | 0.09 | 70 | 0.780 |
| PH090060AANT | 3.1/2 | 90 | 0.60 | 0.10 | 65 | 0.625 |
| PH080060AANT | 80 | 0.60 | 0.10 | 55 | 0.610 | |
| PH076060AANT | 3 | 76 | 0.60 | 0.10 | 53 | 0.601 |
| PH070060AANT | 70 | 0.60 | 0.14 | 50 | 0.555 | |
| PH065060AANT | 65 | 0.60 | 0.16 | 46 | 0.516 | |
| PH063060AANT | 2.1/2 | 63 | 0.60 | 0.16 | 43 | 0.501 |
| PH060060AANT | 60 | 0.60 | 0.16 | 40 | 0.422 | |
| PH051060AANT | 2 | 51 | 0.60 | 0.20 | 35 | 0.360 |
| PH045060AANT | 45 | 0.60 | 0.20 | 32 | 0.319 | |
| PH040060AANT | 40 | 0.60 | 0.25 | 30 | 0.285 | |
| PH038060AANT | 1.1/2 | 38 | 0.60 | 0.30 | 27 | 0.272 |
Temperature Range : Continuous: -40°C to +90°C
