PH520 - ENGINE AND AIR BRAKE HOSE

Applicable Standard : SAE 100R5, SAE J1402 TYPE AII, DOT/FMVSS 106 TYPE AII

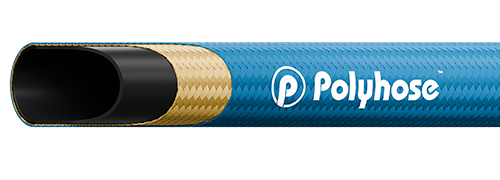

product img

Construction

Inner tube

Synthetic rubber - black resistant to oil, air and water

Reinforcement

Single steel wire braid

Cover

Blue polyester braid cover

Application

Medium pressure hydraulic lines 25 to 210 bar for use with hydraulic handling petroleum based fluids and air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids & other industrial fluids

Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH520-04 -04 05 3/16 4.8 0.52 13.2 3045 210 12180 840 3.0 76 0.210
PH520-05 -05 06 1/4 6.4 0.58 14.7 3045 210 12180 840 3.4 86 0.265
PH520-06 -06 08 5/16 7.9 0.68 17.3 2320 160 9280 640 4.0 102 0.298
PH520-08 -08 10 13/32 10.4 0.77 19.6 2030 140 8120 560 4.6 117 0.355
PH520-10 -10 12 1/2 12.7 0.92 23.4 1815 125 7250 500 5.5 140 0.540
PH520-12 -12 16 5/8 16.0 1.08 27.4 1525 105 6090 420 6.5 165 0.605
PH520-16 -16 22 7/8 22.4 1.23 31.2 870 60 3480 240 7.4 187 0.640
PH520-20 -20 30 1.1/8 28.4 1.50 38.1 655 45 2610 180 9.0 228 0.750
PH520-24 -24 35 1.3/8 35.1 1.75 44.5 510 35 2030 140 10.5 266 1.015
PH520-32 -32 45 1.13/16 46.0 2.22 56.4 365 25 1450 100 13.2 336 1.410
PH520-40 -40 60 2.3/8 60.1 2.88 73.2 365 25 1450 100 24.0 609 2.325

imgTemperature Range : Continuous: -40°C to +150°C , Air not to exceed: +121°C, Use with biodiesel not to exceed +100°C
