PH535 - LPG HOSE As Per IS 9573 : 2012 TYPE -1

Applicable Standard : IS 9573 : 2012 TYPE -1

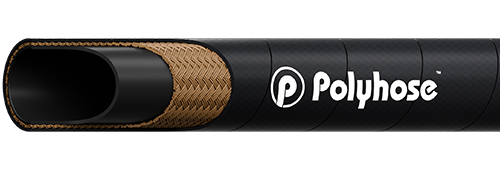

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to n-pentane

Reinforcement : Single Synthetic Yarn with electrically bonded wire optional

Cover : Perforated black colour, Synthetic rubber resistant to abrasion and weather. Available in Wrap and Smooth finish*

Application : Designed for use in motor vehicles with liquified petroleum Gas (LPG) installations, designed for industrial application

Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH535-04 -04 06 1/4 6.5 0.50 12.7 365 25 1450 100 2.8 70 0.165
PH535-05 -05 08 5/16 8.3 0.59 14.9 365 25 1450 100 3.7 95 0.185
PH535-06 -06 10 3/8 10.7 0.68 17.3 365 25 1450 100 4.7 120 0.224
PH535-08 -08 12 1/2 13.2 0.89 22.7 365 25 1450 100 5.9 150 0.405
PH535-10 -10 16 5/8 16.4 1.02 25.9 365 25 1450 100 7.3 185 0.481
PH535-12 -12 19 3/4 19.2 1.13 28.7 365 25 1450 100 8.9 225 0.545
PH535-16 -16 25 1 25.5 1.50 38.0 365 25 1450 100 11.8 300 0.925

imgTemperature Range :  Continuous: -40°C to +70°C

*Smooth cover available only upto size 1"
