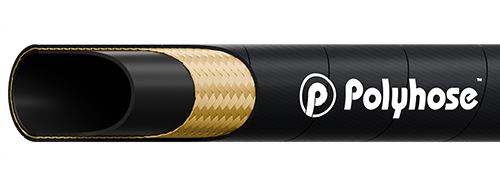

PH503 / 134 A NON - BARRIER TYPE AIR CONDITIONING HOSE
Applicable Standard : SAE J 2064 Type B
Construction
Inner tube
Black colour, Synthetic Rubber resistant to R134a with PEG oil
Reinforcement
- Single Steel Wire Braid
Cover
Black Colour, Synthetic rubber resistant to weather
Application
Car, Truck and Agricultural Machine Air Conditioning System Recommended Fluids: Freon R134a and PEG lubricant oils
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH503-16 | 16 | 22 | 7/8 | 22.0 | 1.24 | 31.6 | 500 | 35 | 2175 | 150 | 9.8 | 250 | 0.926 |
| PH503-20 | 20 | 30 | 1.1/8 | 28.6 | 1.52 | 38.7 | 500 | 35 | 2175 | 150 | 11.8 | 300 | 1.161 |
| PH503-08 | -08 | 12 | 1/2 | 12.7 | 0.91 | 23.2 | 500 | 35 | 2175 | 150 | 4.52 | 115 | 0.530 |
| PH503-08 | -08 | 12 | 1/2 | 12.7 | 0.91 | 23.2 | 500 | 35 | 2175 | 150 | 4.52 | 115 | 0.530 |
Temperature Range : Continuous: -30°C to +125°C
Intermittent : Max. +135°C
