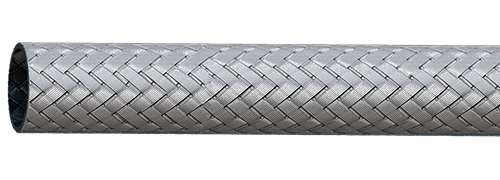

PH 2600 SERIES - WMW
Characteristics
Medium Weight
Note
- Material Available in SS304, SS304L / SS316
- Clean and oil free
- Soft texture allows for easy trimming and quicker hose assembly fabrication
- Engineered for optimal hose coverage
Metric System:
| Item Code | DN | Braids |
Braid Construction (No of Carriers X No of Strands X Wire Diameter)
|
Braid
|
ID
|
OD
|
W
|
| Coverage | Weight | ||||||
| mm | % | mm | mm | kg/m | |||
| PH2600W1R006 | 6 | 1 | 24 X 5 X 0.3 | 94 | 9.6 | 10.8 | 0.075 |
| PH2600W1R008 | 8 | 1 | 24 X 5 X 0.3 | 92 | 12.1 | 13.6 | 0.090 |
| PH2600W1R010 | 10 | 1 | 24 X 6 X 0.3 | 92 | 14.1 | 15.7 | 0.120 |
| PH2600W1R012 | 12 | 1 | 24 X 8 X 0.3 | 92 | 16.7 | 18.2 | 0.140 |
| PH2600W1R016 | 16 | 1 | 36 X 7 X 0.3 | 96 | 21.9 | 23.5 | 0.190 |
| PH2600W1R020 | 20 | 1 | 36 X 9 X 0.3 | 94 | 26.7 | 28.2 | 0.255 |
| PH2600W1R025 | 25 | 1 | 36 X 10 X 0.3 | 96 | 32.3 | 33.8 | 0.260 |
| PH2600W1R032 | 32 | 1 | 48 X 8 X 0.4 | 94 | 41.2 | 43.0 | 0.504 |
| PH2600W1R040 | 40 | 1 | 48 X 9 X 0.4 | 92 | 49.5 | 51.3 | 0.580 |
| PH2600W1R050 | 50 | 1 | 48 X 10 X 0.4 | 96 | 60.7 | 62.6 | 0.630 |
| PH2600W1R065 | 65 | 1 | 72 X 7 X 0.5 | 95 | 78.3 | 80.3 | 1.030 |
| PH2600W1R080 | 80 | 1 | 72 X 8 X 0.5 | 93 | 96.5 | 98.5 | 1.195 |
| PH2600W1R100 | 100 | 1 | 72 X 10 X 0.5 | 88 | 116.2 | 118.2 | 1.471 |
| PH2600W1R125 | 125 | 1 | 72 X 10 X 0.6 | 92 | 149.0 | 152.5 | 2.100 |
| PH2600W1R150 | 150 | 1 | 72 X 11 X 0.6 | 90 | 176.0 | 178.0 | 2.300 |
| PH2600W1R200 | 200 | 1 | 96 X 10 X 0.6 | 90 | 228.0 | 236.0 | 3.300 |
| PH2600W1R250 | 250 | 1 | 96 X 12 X 0.6 | 90 | 278.0 | 285.0 | 4.100 |
| PH2600W1R300 | 300 | 1 | 96 X 12 X 0.7 | 94 | 334.0 | 336.0 | 6.400 |
Imperial System:
| Item Code | DN | Braids |
Braid Construction (No of Carriers X No of Strands X Wire Diameter)
|
Braid
|
ID
|
OD
|
W
|
| Coverage | Weight | ||||||
| inch | % | inch | inch | lbs/ft | |||
| PH2600W1R006 | 1/4 | 1 | 24 X 5 X 0.012 | 94 | 0.4 | 0.4 | 0.050 |
| PH2600W1R008 | 5/16 | 1 | 24 X 5 X 0.012 | 92 | 0.5 | 0.5 | 0.060 |
| PH2600W1R010 | 3/8 | 1 | 24 X 6 X 0.012 | 92 | 0.6 | 0.6 | 0.080 |
| PH2600W1R012 | 1/2 | 1 | 24 X 8 X 0.012 | 92 | 0.7 | 0.7 | 0.094 |
| PH2600W1R016 | 5/8 | 1 | 36 X 7 X 0.012 | 96 | 21.9 | 23.5 | 0.128 |
| PH2600W1R020 | 3/4 | 1 | 36 X 9 X 0.012 | 94 | 26.7 | 28.2 | 0.171 |
| PH2600W1R025 | 1 | 1 | 36 X 10 X 0.012 | 96 | 32.3 | 33.8 | 0.175 |
| PH2600W1R032 | 1.1/4 | 1 | 48 X 8 X 0.016 | 94 | 41.2 | 43.0 | 0.339 |
| PH2600W1R040 | 1.1/2 | 1 | 48 X 9 X 0.016 | 92 | 49.5 | 51.3 | 0.390 |
| PH2600W1R050 | 2 | 1 | 48 X 10 X 0.016 | 96 | 60.7 | 62.6 | 0.423 |
| PH2600W1R065 | 2.1/2 | 1 | 72 X 7 X 0.02 | 95 | 78.3 | 80.3 | 0.692 |
| PH2600W1R080 | 3 | 1 | 72 X 8 X 0.02 | 93 | 96.5 | 98.5 | 0.803 |
| PH2600W1R100 | 4 | 1 | 72 X 10 X 0.02 | 88 | 116.2 | 118.2 | 0.988 |
| PH2600W1R125 | 5 | 1 | 72 X 10 X 0.024 | 92 | 149.0 | 152.5 | 1.411 |
| PH2600W1R150 | 6 | 1 | 72 X 11 X 0.024 | 90 | 176.0 | 178.0 | 1.546 |
| PH2600W1R200 | 8 | 1 | 96 X 10 X 0.024 | 90 | 228.0 | 236.0 | 2.217 |
| PH2600W1R250 | 10 | 1 | 96 X 12 X 0.024 | 90 | 278.0 | 285.0 | 2.755 |
| PH2600W1R300 | 12 | 1 | 96 X 12 X 0.028 | 94 | 334.0 | 336.0 | 4.300 |
