PH684 - SHOT BLASTING HOSE W.P. 12 BAR

product img

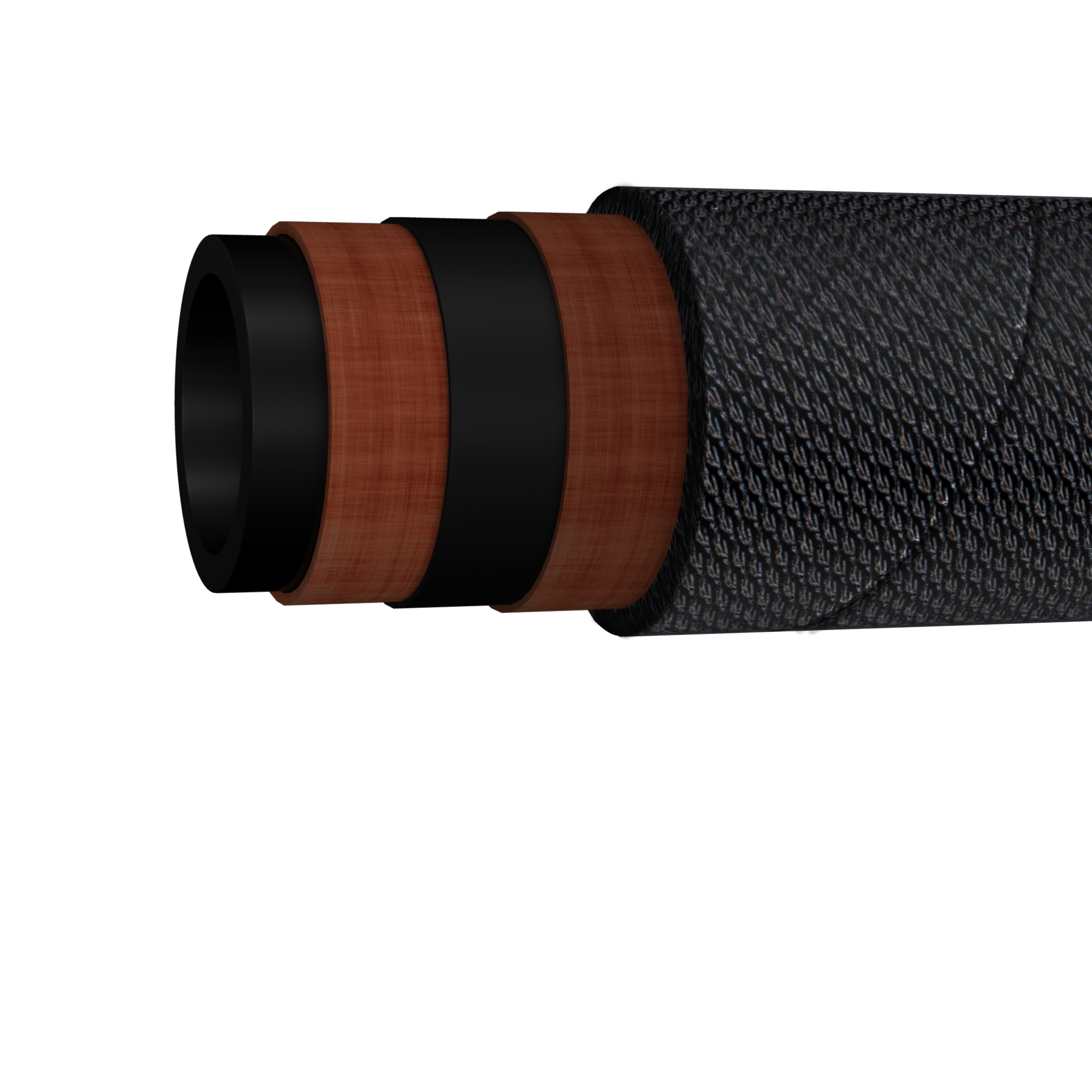

Construction :

Inner tube : Black Colour, Synthetic and natural rubber blend resistant to abrasion

Reinforcement : Four Plies of synthetic textile cords with two cross anti static copper wires

Cover : Black colour, Synthetic rubber resistant to ozone, weather and abrasion

Application : Suitably designed long lasting heavy duty hose for use in sand , metal grits and foundry waste with conductive rubber compound to ensure static electricity dissipation abrasion loss of the tube according to ISO 4649: 50+5mm3

Item
Code		 Dash
Size
ID
OD
OD
WP
BP
W
inch mm inch mm psi bar psi bar kg/m
PH684-08 -08 1/2 12.7 1.18 30.0 175 12 525 36 0.75
PH684-12 -12 3/4 19.0 1.50 38.0 175 12 525 36 1.10
PH684-16 -16 1 25.0 1.89 48.0 175 12 525 36 1.60
PH684-20 -20 1.1/4 32.0 2.17 55.0 175 12 525 36 1.90
PH684-24 -24 1.1/2 38.0 2.40 61.0 175 12 525 36 2.15
PH684-32 -32 2 51.0 2.87 73.0 175 12 525 36 2.65

imgTemperature Range : Continuous: -30°C to +70°C
