PH183 - FIRE SHIELD HOSE

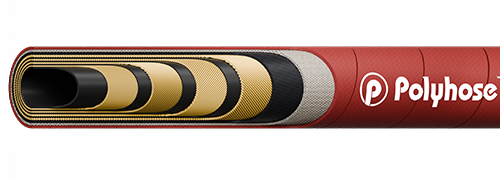

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to oil and water

Reinforcement : Four high tensile steel wire sprial (DN 10 - 32), Six high tensile steel wire sprial (DN 38 - 51)

Cover : Red Colour synthetic rubber resistant to fire, abrasion, oil, weather & ozone

Application : Fire Shield hose is used as flame preventer in the Hydraulic Control System with Operating Pressure 5000 PSI. It meets fire test as per API 16D spec for 5 minutes at 700°C (tested for more than 10 minutes at 800° C), operated under emergencies

Note : Fiberglass layer applied till 1.1/4“ size
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH183-06 -6 10 3/8 9.70 1.02 26.00 5000 345 20000 1380 5.91 150 1.14
PH183-08 -8 12 1/2 13.0 1.18 30.00 5000 345 20000 1380 9.06 230 1.36
PH183-12 -12 19 3/4 19.20 1.46 37.00 5000 345 20000 1380 12.01 305 1.96
PH183-16 -16 25 1 25.90 1.73 44.00 5000 345 20000 1380 14.96 380 2.70
PH183-20 -20 32 1.1/4 32.20 2.28 58.00 5000 345 20000 1380 17.99 457 4.92
PH183-24 -24 38 1.1/2 38.60 2.48 63.00 5000 345 20000 1380 22.05 560 6.03
PH183-32 -32 51 2 51.30 3.01 76.50 5000 345 20000 1380 26.77 680 7.83

imgTemperature Range : Continuous: -40°C to +121°C
