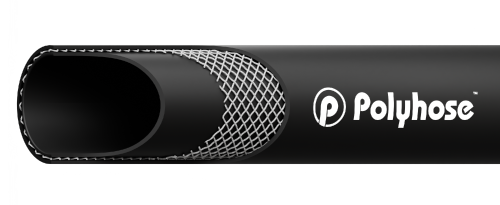

PH368 - MULTIPURPOSE HOSE
Construction :
Inner tube : Plasticized PVC, Black
Reinforcement : Single braid of Synthetic fiber
Cover : Abrasion Resistant Thermo-compound, Black Colour
Application : Specially designed for spraying various pesticides, high pressure watering and aerating etc,.
| Note : Special colours available on request |
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH368-04 | -04 | 06 | 1/4 | 6.5 | 0.492 | 12.5 | 290 | 20 | 870 | 60 | 1.0 | 25 | 115 |
| PH368-05 | -05 | 08 | 5/16 | 8.0 | 0.571 | 14.5 | 290 | 20 | 870 | 60 | 1.2 | 30 | 160 |
| PH368-06 | -06 | 10 | 3/8 | 9.5 | 0.630 | 16.0 | 290 | 20 | 870 | 60 | 1.6 | 40 | 185 |
| PH368-08 | -08 | 12 | 1/2 | 12.7 | 0.795 | 20.2 | 290 | 20 | 870 | 60 | 2.0 | 50 | 245 |
| PH368-10 | -10 | 16 | 5/8 | 16.0 | 0.945 | 24.0 | 290 | 20 | 870 | 60 | 2.6 | 65 | 350 |
| PH368-12 | -12 | 19 | 3/4 | 19.0 | 1.067 | 27.1 | 290 | 20 | 870 | 60 | 2.8 | 70 | 400 |
| PH368-16 | -16 | 25 | 1 | 25.4 | 1.299 | 33.0 | 290 | 20 | 725 | 50 | 5.0 | 125 | 495 |
Temperature Range : Continuous: -10°C to +60°C
