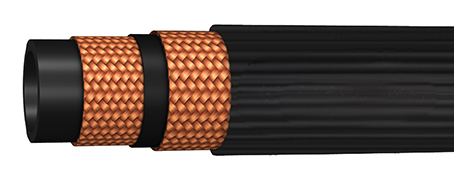

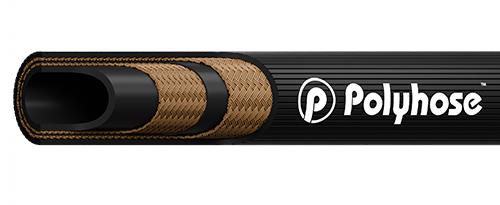

PH138 - HYDRAULIC BRAKE HOSE
Applicable Standard : SAE J1401 /IS 7079
Construction
Inner tube
EPDM rubber - black resistant to hydraulic brake fluid
Reinforcement
Double Textile Braids
Cover
EPDM rubber - black resistant to abrasion, weather & ozone
Application
High-performance hydraulic brake hose with low volumetric expansion ensures constant brake reaction for two-wheelers, passenger cars and light trucks. Suitable for DOT3 and DOT 4 brake fluids
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH138-02 | -02 | 03 | 1/8 | 3.5 | 0.40 | 10.2 | 1815 | 125 | 7105 | 490 | 3.0 | 76 | 0.110 |
Temperature Range : Continuous: -45°C to +120°C
