PH238 - 2SNX - HP HIGH TEMPERATURE MSHA

Applicable Standard : Exceeds SAE 100R16/EN 857

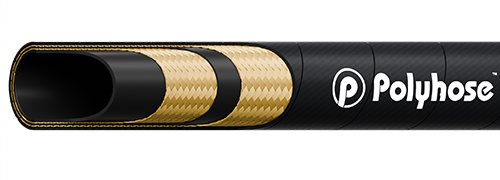

product img

Construction :

Inner tube : Black Colour, Synthetic rubber resistant to oil and water

Reinforcement : Double steel wire braids

Cover : Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application : High Pressure Hydraulic Lines 175 to 450 bar and requires compact outer dia and high flexibility for use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems

Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH238-04 -04 06 1/4 6.7 0.53 13.4 6525 450 26100 1800 1.8 45 0.299
PH238-05 -05 08 5/16 8.2 0.59 15.0 6090 420 24360 1680 2.4 60 0.367
PH238-06 -06 10 3/8 9.8 0.69 17.4 5585 385 22330 1540 2.8 70 0.472
PH238-08 -08 12 1/2 13.1 0.81 20.6 5005 345 20010 1380 3.5 90 0.618
PH238-10 -10 16 5/8 16.2 0.94 24.0 4205 290 16820 1160 5.1 130 0.745
PH238-12 -12 19 3/4 19.3 1.09 27.7 4060 280 16240 1120 6.3 160 0.901
PH238-16 -16 25 1 25.9 1.40 35.6 2900 200 11600 800 8.3 210 1.261
PH238-20 -20 31 1.1/4 32.0 1.73 44.0 2540 175 10150 700 11.8 300 1.960

imgTemperature Range : -40°C to +135°C

Intermittent : +120°C

Impulse Cycles : 2,00,000

*Smooth cover available only upto size 1"
