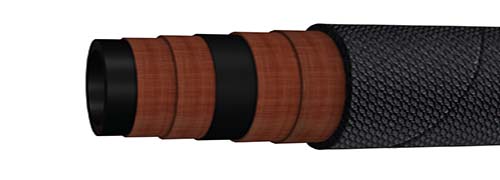

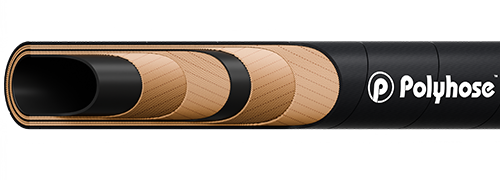

PHF92 - WATER JETTING HOSE W.P 35 BAR
Construction
Inner tube
EPDM rubber - black resistant to water
Reinforcement
Plies of synthetic textile cords
Cover
EPDM rubber - black resistant to abrasion, weather & ozone
Application
High pressure, flexible water jetting hose designed for use in cleaning, cutting and surface preparation applications.
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PHF92-40 | -40 | 2.1/2 | 63.0 | 3.07 | 78.2 | 510 | 35 | 1015 | 70 | 2.10 |
Temperature Range : -30°C to +82°C
