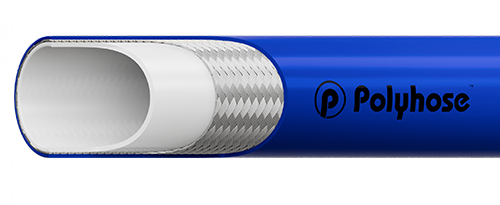

PH1593 - PTFE HOSE WITH POLYURETHANE COVER

Applicable Standard : Meets SAE J517 - 100R14

product img

Construction

Inner tube

Sintered tube of polytetrafluoroethylene (P.T.F.E)

Reinforcement

Single braid of 304 series of stainless steel wire

Cover

Polyurethane, Blue Color

Application

P.T.F.E. hose has excellent temperature characteristics at both high and low temperatures, outstanding chemical resistance, non-contaminating properties, a low coefficient of friction, and resists deterioration. Therefore, it is generally used in applications where one or more of these properties are critical.

Item
Code		 Dash
Size
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH1593-6 -6 5/16 8.00 0.560 14.3 2500 175 10000 700 4.0 100 200
PH1593-8 -8 13/32 10.4 0.660 16.7 2000 140 8000 560 5.0 130 260
PH1593-10 -10 1/2 12.8 0.760 19.2 1750 120 7000 480 6.5 165 320
PH1593-12 -12 5/8 16.00 0.870 22.1 1270 88 5080 350 7.5 190 370
PH1593-16 -16 7/8 22.2 1.160 29.5 1000 69 4000 275 9.0 230 520

imgTemperature Range : -40°C to +121 °C
