PH438 PUSH LOK HOSE MSHA

product img

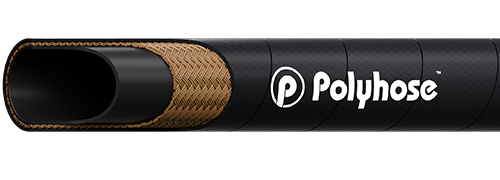

Construction

Inner tube

synthetic rubber - black resistant to oil and water

Reinforcement

  • Textile Braid

Cover

Synthetic rubber - black resistant to abrasion and weather, oil & ozone with smooth cover finish. Other colours upon request.

Application

The Push-Lok hose is a multipurpose, long-lasting and user-friendly hose system made for automotive and industrial use. It is widely used in environments where ease of assembly and reliability are critical. Push-Lok hoses are often employed in hydraulic, pneumatic and fluid handling systems, offering secure and leak-free connections without the need for clamps, fittings, or special tools.

Available Cover Colors


Red
Yellow
Blue
Green
Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BR/r
W
inch mm inch mm psi bar inch mm kg/m
PH438-04 -04 06 1/4 6.4 0.5 12.7 435 30 2.56 65 0.18
PH438-05 -05 08 5/16 8 0.56 14.3 435 30 2.95 75 0.209
PH438-06 -06 10 3/8 9.5 0.63 15.9 435 30 2.95 75 0.237
PH438-08 -08 12 1/2 12.7 0.78 19.7 435 30 3.94 100 0.333
PH438-10 -10 16 5/8 15.9 0.91 23 365 25 4.92 125 0.393
PH438-12 -12 19 3/4 19.1 1.05 26.6 365 25 5.91 150 0.499
PH438-16 -16 25 1 25.6 1.34 34 220 15 7.87 200 0.698

imgTemperature Range : Oil: -40°C to +100°C Water: +85°C Air: +70°C
