PH258 - 2SC

Applicable Standard : EN 857 - 2SC / SAE 100R16 / ISO 11237 -1

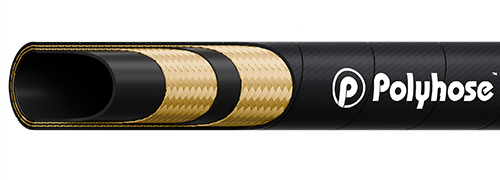

product img

Construction :

Inner tube : Black Color, Synthetic rubber resistant to oil and water

Reinforcement : Double steel wire braids

Cover : Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application : High Pressure Hydraulic Lines 125 to 400 bar requiring compact outer dia and high flexibility for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems

Cover Options
PH258 : MSHA
PH230: HARDX MSHA
PH260 : ABRAZONX MSHA
Temperature Usage Options
PH558: Low temperature -55°C to +100°C
PH268 : High temperature MSHA cover -40°C to +135°C
PH270 : Ultra high temperature MSHA cover -40°C to +150°C
Note : 1.1/4" 1SC not covered under EN857
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH258-04 -04 06 1/4 6.7 0.52 13.2 5800 400 23200 1600 2.0 50 0.323
PH258-05 -05 08 5/16 8.2 0.59 14.9 5075 350 20300 1400 2.2 55 0.366
PH258-06 -06 10 3/8 9.8 0.67 17.1 4785 330 19140 1320 2.6 65 0.466
PH258-08 -08 12 1/2 13.1 0.80 20.4 3990 275 15950 1100 3.5 90 0.624
PH258-10 -10 16 5/8 16.3 0.93 23.5 3625 250 14500 1000 3.9 100 0.736
PH258-12 -12 19 3/4 19.3 1.10 28 3120 215 12470 860 4.7 120 0.932
PH258-16 -16 25 1 25.9 1.41 35.7 2395 165 9570 660 5.9 150 1.324
PH258-20 -20 31 1.1/4 32.2 1.73 43.9 1815 125 7250 500 8.3 210 1.750
PH258-24 -24 38 1.1/2 38.7 1.89 48.0 1450 100 5800 400 9.8 250 1.760
PH258-32 -32 51 2 51.3 2.43 61.6 1305 50 5220 360 11.8 300 2.300

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

Impulse Cycles : 200,000; Tested upto 400,000 cycles,upto 1"I.D

*Smooth cover available only upto size 1"
