PH693 - FIRE SHIELD HOSE

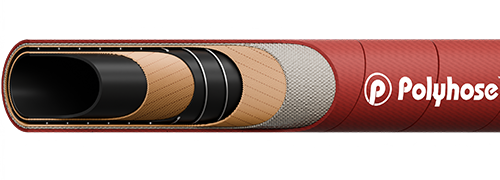

product img

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil and water

Reinforcement : Plies of synthetic cords with steel helix

Cover : Red colour synthetic rubber with fire resistant layer, abrasion, oil, weather, heat & ozone

Application : Fire Shield hose is used as flame preventer in the Hydraulic Control System with Operating Pressure 305 PSI. It meets fire test as per API 16D spec for 5 minutes at 700°C (tested for more than 10 minutes at 800° C), operated under emergencies

Item
Code		 Dash
Size
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH693-32 -32 2 50.80 3.11 79.00 305 21 1500 104 15.75 400 4.47
PH693-48 -48 3 76.00 4.21 107.00 305 21 1500 104 19.69 500 6.83
PH693-64 -64 4 102.00 5.28 134.00 305 21 1500 104 23.62 600 9.16
PH693-96 -96 6 152.00 7.24 184.00 305 21 1500 104 44.88 1140 13.75

imgTemperature Range : Continuous: -40°C to +121°C
