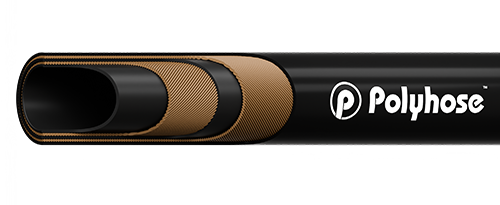

PH487 - MULTIPURPOSE HOSE
Construction
Inner tube
Synthetic rubber - black resistant to fuel and oil
Reinforcement
Textile reinforcement
Cover
Synthetic rubber - black resistant to abrasion, weather and ozone.
Application
The hose is designed to offer excellent resistance to a wide range of industrial fluids, petroleum-based oils and fuels, water and nitrogen.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH487-04 | -04 | 06 | 1/4 | 6.4 | 0.51 | 13.0 | 150 | 10 | 870 | 60 | 2.6 | 65 | 0.16 |
| PH487-05 | -05 | 08 | 5/16 | 7.9 | 0.59 | 15.0 | 150 | 10 | 870 | 60 | 3.0 | 75 | 0.19 |
| PH487-06 | -06 | 10 | 3/8 | 9.5 | 0.67 | 17.0 | 150 | 10 | 870 | 60 | 3.0 | 75 | 0.31 |
| PH487-08 | -08 | 12 | 1/2 | 12.7 | 0.83 | 21.2 | 150 | 10 | 870 | 60 | 3.9 | 100 | 0.37 |
| PH487-10 | -10 | 16 | 5/8 | 15.9 | 1.00 | 25.5 | 150 | 10 | 870 | 60 | 4.9 | 125 | 0.64 |
| PH487-12 | -12 | 19 | 3/4 | 19.1 | 1.19 | 30.2 | 150 | 10 | 870 | 60 | 5.9 | 150 | 0.7 |
| PH487-16 | -16 | 25 | 1 | 25.4 | 1.41 | 35.8 | 150 | 10 | 870 | 60 | 7.9 | 200 | 1.1 |
Temperature Range : Continuous: -40°C to +100°C
