PH521 - SUPER SERVICE HOSE

Applicable Standard : Exceeds EN 857 - 1SC / EN 1829-2

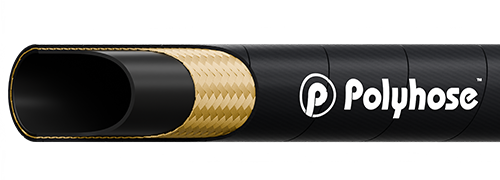

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to hot water

Reinforcement : Single steel wire braid

Cover : Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*, Color option in Grey, Blue available on request

Application : Cleaning lines for lobby and semi professional machines. High flexibility for use with minerals, glycols, polyglycols oils, synthetic ester oils, oils in water emlusion

Item Code	Dash Size	DN	ID		OD		WP		BP		BR/r		W
Item Code	Dash Size	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	kg/m
PH521-04	-04	06	1/4	6.7	0.47	12.0	5220	360	13050	900	3.0	75	0.195
PH521-05	-05	08	5/16	8.2	0.54	13.6	4930	340	12325	850	3.3	85	0.232
PH521-06	-06	10	3/8	9.8	0.63	16.0	4350	300	10875	750	3.5	90	0.312
PH521-08	-08	12	1/2	13.1	0.78	19.6	3625	250	9065	625	5.1	130	0.428

Temperature Range : Continuous: -40°C to +155°C

*Smooth cover available only upto size 1"
