PH1006 - PTFE WITH FIBER GLASS AND SS BRAID

Applicable Standard : Polyhose proprietary product

product img

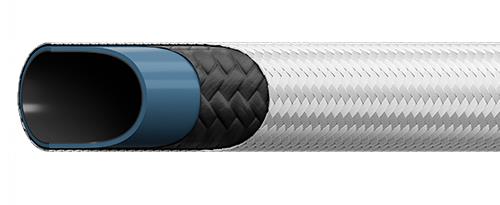

Construction

Inner tube

Polytetrafluoroethylene (PTFE- Conductive)

Reinforcement

  • One braid of fiber glass yarn and one braid of 304 stainless steel wire

Application

P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Combination of the fiberglass outer braid and PTFE liner, make the hose essentially non-flammable.

Note : Compliances:FDA 21CFR 177.1550USP Class VI.Working and burst pressure are at 20 Deg C temperature. Vacuum are at 230deg cel temperature.
Item
Code
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH1006-08 1/2 12.70 0.750 19.05 1800 125 7200 500 2.5 63.5 360
PH1006-04 1/4 6.4 0.460 11.7 3500 240 14000 960 1.25 32 190
PH1006-06 3/8 9.6 0.570 14.5 3000 210 12000 840 1.75 44 250
PH1006-12 3/4 0.750 1.000 25.4 1250 86 5000 345 3.5 90 540

imgTemperature Range : Continuous : -54°C to +230°C

Vacuum : 28 in Hg
