PH657 - OIL FUEL DELIVERY HOSE FRAS - 20 BAR

product img

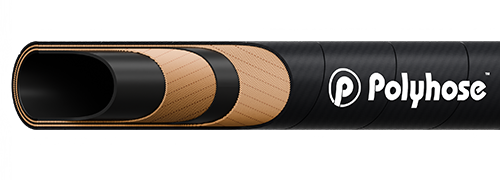

Construction :

Inner tube : Black colour, Conductive Synthetic Rubber resistant to oil

Reinforcement : Plies of synthetic textile cords

Cover : Black colour, Conductive Synthetic rubber resistant to weather and abrasion

Application : Mandrel built heavy duty oil delivery hose for handling a wide range of gasoline or petroleum oils of aromatic content up to 50% from tank truck, in dispensing station, refineries, etc.

Item
Code		 Dash
Size
ID
OD
OD
WP
BP
W
inch mm inch mm psi bar psi bar kg/m
PH657-12 -12 3/4 19.0 1.22 31.0 300 20 870 60 0.68
PH657-16 -16 1 25.0 1.46 37.0 300 20 870 60 0.81
PH657-20 -20 1.1/4 32.0 1.73 44.0 300 20 870 60 1.22
PH657-24 -24 1.1/2 38.0 2.01 51.0 300 20 870 60 1.35
PH657-32 -32 2 51.0 2.60 66.0 300 20 870 60 2.04
PH657-40 -40 2.1/2 63.0 3.11 79.0 300 20 870 60 2.65
PH657-48 -48 3 76.0 3.58 91.0 300 20 870 60 3.08
PH657-56 -56 3.1/2 89.0 4.17 106.0 300 20 870 60 3.60
PH657-64 -64 4 102.0 4.72 120.0 300 20 870 60 4.87
PH657-80 -80 5 127.0 5.75 146.0 300 20 870 60 5.60
PH657-96 -96 6 152.0 6.69 170.0 300 20 870 60 7.00

imgTemperature Range : Continuous: -20°C to +80°C
