PH642 - XLPE CHEMICAL SUCTION AND DISCHARGE HOSE W.P. 17 BAR

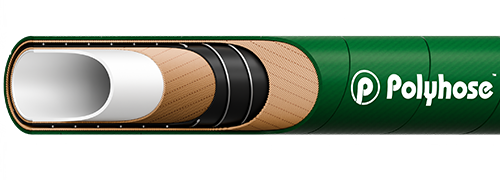

product img

Construction :

Inner tube : White colour, Synthetic rubber with XLPE liner

Reinforcement : Plies of synthetic textile cords with steel helix and two cross anti static copper wires

Cover : Green colour EPDM, wrapped type, abrasion and weather resistant

Application : Excellent in handling petroleum based products, hydrocarbon solvents, oxidising chemicals, major strong acid and alkali as well as organic fluid etc.,

Item
Code
Dash
Size
ID
OD
OD
WP
BP
V
W
inch mm inch mm psi bar psi bar bar kg/m
PH642-12 -12 3/4 19.0 1.18 30.0 250 17 750 51 0.9 0.80
PH642-16 -16 1 25.0 1.38 35.0 250 17 750 51 0.9 1.39
PH642-20 -20 1.1/4 32.0 1.73 44.0 250 17 750 51 0.9 1.52
PH642-24 -24 1.1/2 38.0 1.97 50.0 250 17 750 51 0.9 2.00
PH642-32 -32 2 51.0 2.64 67.0 250 17 750 51 0.9 2.70
PH642-40 -40 2.1/2 63.0 3.11 79.0 250 17 750 51 0.9 3.20
PH642-48 -48 3 76.0 3.70 94.0 250 17 750 51 0.9 4.50
PH642-64 -64 4 102.0 4.72 120.0 250 17 750 51 0.9 4.80

imgTemperature Range : Continuous: -20°C to +120°C
