PH61C - OIL SUCTION & DISCHARGE 10 BAR (CORRUGATED COVER)

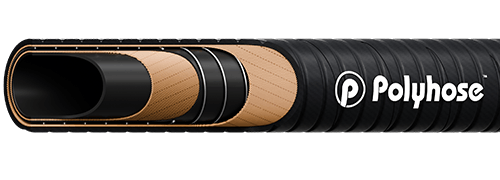

product img

Construction

Inner tube

Black colour, Synthetic rubber resistant to oil

Reinforcement

  • Plies of synthetic textile cords with steel helix and two cross antistatic copper wire

Cover

Black colour, Synthetic rubber resistant to oil, ozone and abrasion

Application

Corrugated oil suction and discharge hose designed for handling gasoline, petrol, diesel, and oil-based products with up to 50% aromatic content. The corrugated construction provides excellent flexibility, making it an ideal solution for applications requiring easy handling and installation in demanding service conditions.

Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH61C-64 -64 102 4 102.0 4.49 114.0 75 5 290 20 20.5 520 2.750
PH61C-80 -80 127 5 127.0 5.67 144.0 75 5 290 20 26.8 680 4.100
PH61C-12 -12 19 3/4 19.0 1.14 29.0 150 10 580 40 2.8 70 0.600
PH61C-16 -16 25 1 25.4 1.34 34.0 150 10 580 40 3.5 90 0.752
PH61C-18 -18 28 1.1/8 28.0 1.38 35.0 150 10 580 40 3.9 100 0.902
PH61C-20 -20 32 1.1/4 32.0 1.65 42.0 150 10 580 40 4.7 120 0.950
PH61C-24 -24 38 1.1/2 38.0 1.81 46.0 150 10 580 40 5.3 135 1.078
PH61C-26 -26 42 1.5/8 42.0 1.97 50.0 150 10 580 40 5.5 140 1.199
PH61C-32 -32 51 2 51.0 2.36 60.0 150 10 580 40 6.7 170 1.419
PH61C-40 -40 63 2.1/2 63.0 2.83 72.0 150 10 580 40 10.2 260 1.925
PH61C-48 -48 76 3 76.0 3.41 86.5 75 5 290 20 14.6 370 2.380

imgTemperature Range : Continuous: -30°C to +100°C
