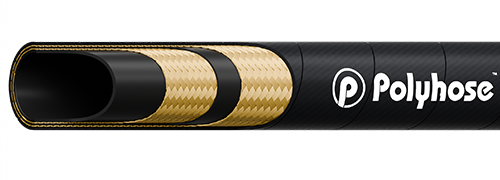

PH417 COMPACT EHT DRILLER HOSE

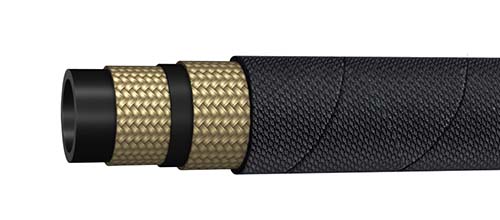

product img

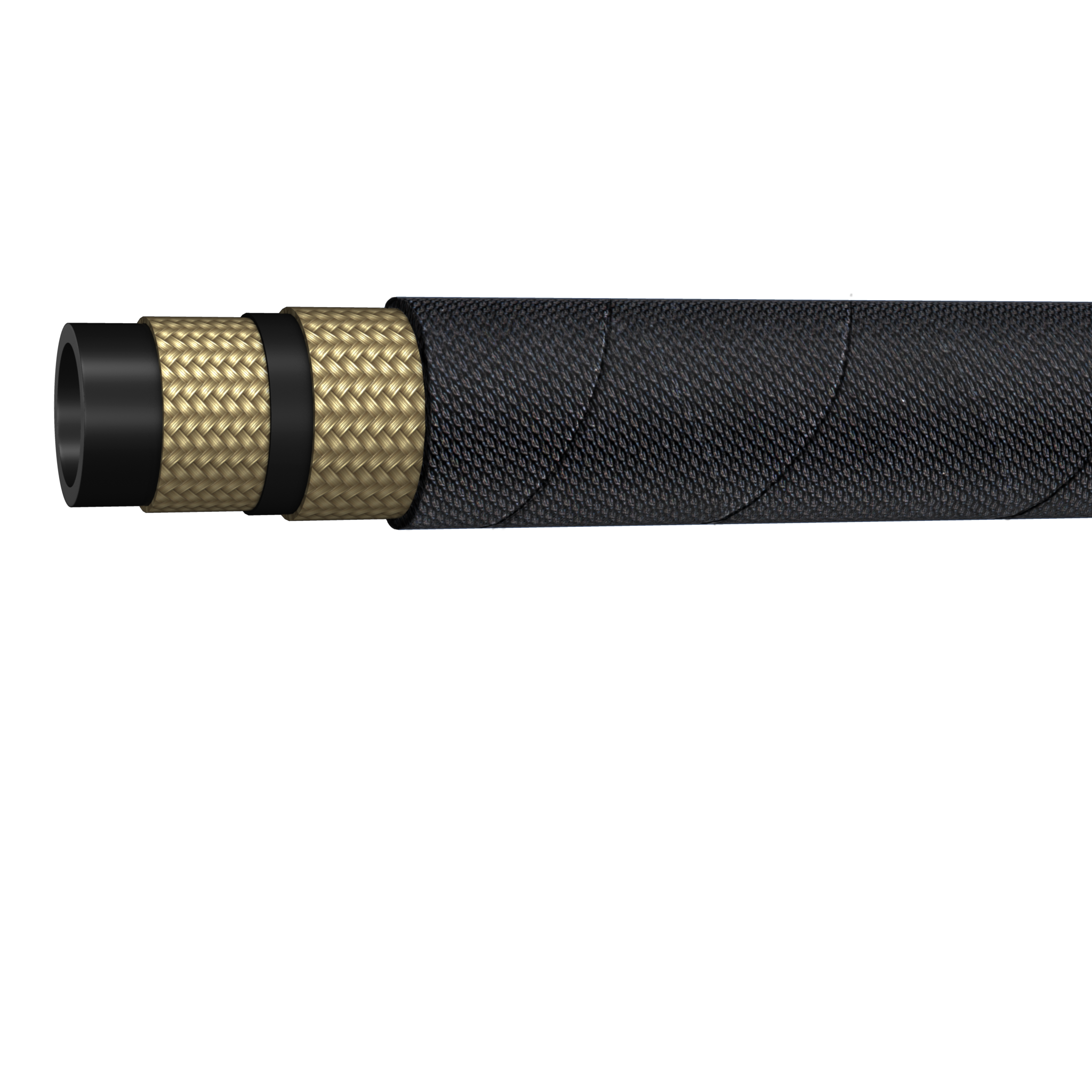

Construction

Inner tube

Black colour, synthetic rubber resistant to oil & air.

Reinforcement

Double steel wire braid

Cover

Black colour, synthetic rubber resistant to weather, abrasion & ozone.

Application

High pressure large bore heavy duty drill hose used in hydrulic oil or air lines in industrial, construction & pneumatic Mining applications. Also available in Blue cover on request.

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH417-24 -24 38 1.1/2 38.7 1.89 48 1450 100 5800 400 9.8 250 1.689
PH417-32 -32 51 2 51.3 2.44 62 1305 90 5220 360 11.8 300 2.52

imgTemperature Range : Continuous Oil: -40°C to +150°C Air: -40°C to +121°C

Impulse Cycles : 200000
