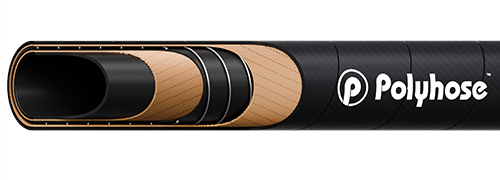

PH611 - OIL / FUEL SUCTION & DISCHARGE HOSE W.P. 10 BAR

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to oil

Reinforcement : Plies of synthetic textile cords with steel helix and two cross antistatic copper wire

Cover : Black colour, Synthetic rubber resistant to oil, ozone and abrasion

Application : Mandrel built heavy duty oil suction and discharge hose for handling grades of gasoline or petroleum oils of aromatic content upto 50% from tank truck, in dispensing station etc, during winter/summer seasons and withstands full vacuum

Item
Code
Dash
Size
ID
OD
OD
WP
BP
V
W
inch mm inch mm psi bar psi bar bar kg/m
PH611-12 -12 3/4 19.0 1.14 29.0 150 10 435 30 0.90 0.60
PH611-16 -16 1 25.0 1.38 35.0 150 10 435 30 0.90 0.74
PH611-20 -20 1.1/4 32.0 1.65 42.0 150 10 435 30 0.90 0.90
PH611-24 -24 1.1/2 38.0 1.89 48.0 150 10 435 30 0.90 1.10
PH611-32 -32 2 51.0 2.44 62.0 150 10 435 30 0.90 1.40
PH611-40 -40 2.1/2 63.0 2.95 75.0 150 10 435 30 0.90 2.10
PH611-48 -48 3 76.0 3.54 90.0 150 10 435 30 0.90 2.70
PH611-56 -56 3.1/2 89.0 4.09 104.0 150 10 435 30 0.90 3.10
PH611-64 -64 4 102.0 4.61 117.0 150 10 435 30 0.90 3.80
PH611-80 -80 5 127.0 5.63 143.0 150 10 435 30 0.90 6.00
PH611-96 -96 6 152.0 6.61 168.0 150 10 435 30 0.80 7.40
PH611-128 -128 8 203.0 8.82 224.0 150 10 435 30 0.70 12.20

imgTemperature Range : Continuous: -20°C to +80°C
