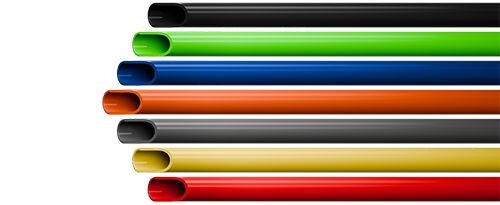

POLYAMIDE TUBING

Applicable Standard : DIN73378, DIN74324

product img

Construction :

Application : Automotive gasoline, High pressure lubricants, Refrigeration lines, Gasoline in various industries, Fuel lines for petrol engines, Beverage lines, For conveying hydrocarbon, For Conveying Vegetable oil, For Conveying Ester, etc., Air line on pneumatic controls systems, lines for air compressors & vaccum pumps

Note : We also supply PA11 and TPE tubes. Kindly refer our part nomenclature before ordering. Also special sizes and colours are available on request. Multilayer upto 5 layers available on request
Item
Code
ID
OD
OD
WT
BP
BR/r
W
mm mm mm (Kg/cm2) mm g/m
12-0030000150BK 1.50 3.00 0.75 200 20 7
12-0040000200BK 2.00 4.00 1.00 200 20 12
12-0040000250BK 2.50 4.00 0.75 135 20 10
12-0040000300BK 3.00 4.00 0.50 85 20 7
12-0047000270BK 2.70 4.70 1.00 160 25 14
12-0050000300BK 3.00 5.00 1.00 150 25 16
12-0050000400BK 4.00 5.00 0.50 120 30 9
12-0060000300BK 3.00 6.00 1.50 200 30 26
12-0060000400BK 4.00 6.00 1.00 120 30 20
12-0060000500BK 5.00 6.00 0.50 55 30 11
12-0080000600BK 6.00 8.00 1.00 85 40 27
12-0080000500BK 5.00 8.00 1.50 140 40 38
12-0095000750BK 7.50 9.50 1.00 70 50 33
12-0095000600BK 6.00 9.50 1.75 135 50 53
12-0100000800BK 8.00 10.00 1.00 65 50 35
12-0120001000BK 10.00 12.00 1.00 55 80 43
12-0125001000BK 10.00 12.50 1.25 65 85 55
12-0150001200BK 12.00 15.00 1.50 65 90 79
12-0160001400BK 14.00 16.00 1.00 40 110 59
06-0030000150NT 1.50 3.00 0.75 270 20 7
06-0040000200NT 2.00 4.00 1.00 270 20 12
06-0040000250NT 2.50 4.00 0.75 185 20 10
06-0040000300NT 3.00 4.00 0.50 115 20 7
06-0047000270NT 2.70 4.70 1.00 215 25 14
06-0050000300NT 3.00 5.00 1.00 200 35 16
06-0050000400NT 4.00 5.00 0.50 50 40 9
06-0060000300NT 3.00 6.00 1.50 270 40 26
06-0060000400NT 4.00 6.00 1.00 160 40 20
06-0060000500NT 5.00 6.00 0.50 75 40 11
06-0080000600NT 6.00 8.00 1.00 115 50 27
06-0080000500NT 5.00 8.00 1.50 185 60 38
06-0095000750NT 7.50 9.50 1.00 95 60 33
06-0095000600NT 6.00 9.50 1.75 180 70 53
06-0100000800NT 8.00 10.00 1.00 90 60 35
06-0120001000NT 10.00 12.00 1.00 70 80 43
06-0125001000NT 10.00 12.50 1.25 75 85 55
06-0150001200NT 12.00 15.00 1.50 90 100 79
06-0160001400NT 14.00 16.00 1.00 55 110 59

imgTemperature Range : Continuous:-40°C to +100°C
