PH804 - POLY - FUEL HOSE

Applicable Standard : EN 13765 TYPE 2 : 2010

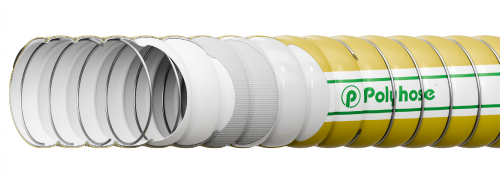

product img

Construction

Hose made from Polypropylene fabric and films with PVC coated fabric cover, Inner & Outer wire is galvanised mild steel

Colour

Yellow with white strip

Application

Suction and discharge hose mainly for transfer of petroleum products by Road tankers and Rail tankers and loading gantries

Item
Code
Dash
Size
ID
OD
OD
WP
BR/r
inch mm inch mm psi bar inch mm
PH804-16 -16 1 25.0 1.26 32.0 150 10 4.92 125
PH804-24 -24 1-1/2 38.0 1.97 50.0 150 10 5.91 150
PH804-32 -32 2 51.0 2.40 61.0 150 10 7.87 200
PH804-40 -40 2-1/2 63.0 2.99 76.0 150 10 7.87 200
PH804-48 -48 3 76.0 3.46 88.0 150 10 11.02 280
PH804-64 -64 4 102.0 4.41 112.0 150 10 15.75 400

imgTemperature Range : Continuous: -30°C to +80°C
