PH486 - 5000 PSI ABRAZON - X MSHA

Applicable Standard : ISO 18752 - BC & CC

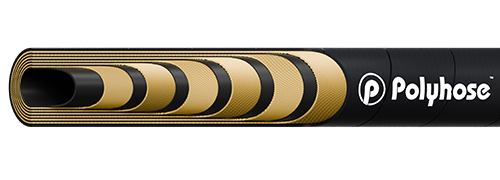

product img

Construction

Inner tube

Black colour, synthetic rubber resistant to oil and water

Reinforcement

DoublFour high tensile steel wire spirals (DN10 - 31), Six high tensile steel wire spirals (DN38 - 51)

Cover

Abrazon-X Black, exceptionally abrasion, oil, ozone resistant synthetic rubber sheathed with layer of UHMW-PE foil.

Application

Constant pressure hydraulic Lines 350 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH486-06 -06 10 3/8 9.8 0.84 21.4 5000 350 20000 1400 3.5 90 0.822
PH486-08 -08 12 1/2 13.1 0.82 24.6 5000 350 20000 1400 4.5 115 0.994
PH486-10 -10 16 5/8 16.2 1.06 27.0 5000 350 20000 1400 4.7 120 1.258
PH486-12 -12 19 3/4 19.3 0.82 32.1 5000 350 20000 1400 9.4 240 1.814
PH486-16 -16 25 1 25.9 1.52 38.7 5000 350 20000 1400 11.8 300 2.277
PH486-20 -20 31 1.1/4 32.2 1.75 44.5 5000 350 20000 1400 18.1 460 2.671
PH486-24 -24 38 1.1/2 38.7 2.26 57.3 5000 350 20000 1400 19.7 500 5.747
PH486-32 -32 51 2 51.3 0.82 71.1 5000 350 20000 1400 24.8 630 7.852

imgTemperature Range : -40°C to +120°C

Intermittent : +120°C
