PH484 - 4000 PSI HARD - X MSHA

Applicable Standard : ISO 18752 - BC & CC

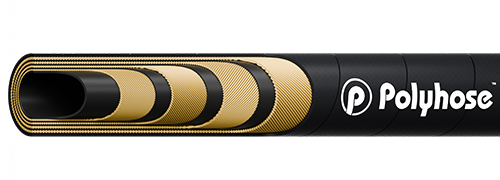

product img

Construction

Inner tube

Black colour, synthetic rubber resistant to oil and water

Reinforcement

Four high tensile steel wire spirals spirals

Cover

Hard-X Black, extra abrasion, oil, ozone resistant synthetic rubber.

Application

Constant pressure hydraulic Lines 280 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH484-06 -06 10 3/8 9.8 0.80 20.3 4000 280 16000 1120 2.6 65 0.660
PH484-08 -08 12 1/2 13.1 0.94 23.8 4000 280 16000 1120 3.5 90 0.852
PH484-10 -10 16 5/8 16.2 1.08 27.4 4000 280 16000 1120 3.9 100 1.059
PH484-12 -12 19 3/4 19.3 1.21 30.7 4000 280 16000 1120 4.7 120 1.134
PH484-16 -16 25 1 25.9 1.50 38.0 4000 280 16000 1120 5.9 150 1.980
PH484-20 -20 31 1.1/4 32.2 1.75 44.5 4000 280 16000 1120 18.1 460 2.671
PH484-24 -24 38 1.1/2 38.7 2.11 53.5 4000 280 16000 1120 22.0 560 3.566
PH484-32 -32 51 2 51.3 2.56 65.0 4000 280 16000 1120 24.8 630 5.132

imgTemperature Range : -40°C to +120°C

Intermittent : +120°C
