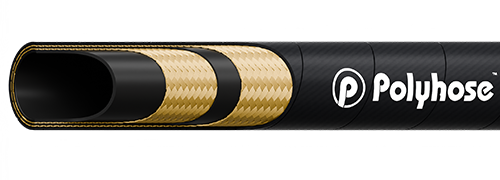

PH453 - 3000 PSI ULTRA HIGH TEMPERATURE MSHA
Applicable Standard : ISO 18752 - AC (DN06 - 25) , ISO 18752 - BC & CC (DN31 - 51)
Construction
Inner tube
Black colour, synthetic rubber resistant to oil and water
Reinforcement
Single steel wire braid (DN06 - 12), Double steel wire braids (DN16 - 25), Four high tensile steel wire spirals (DN31 - 51)
Cover
Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. smooth *and wrap finish applicable only for wire braided hose
Application
Constant pressure hydraulic lines 210 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH453-04 | -04 | 06 | 1/4 | 6.7 | 0.50 | 12.8 | 3000 | 210 | 12000 | 840 | 2.0 | 50 | 0.216 |
| PH453-05 | -05 | 08 | 5/16 | 8.2 | 0.56 | 14.3 | 3000 | 210 | 12000 | 840 | 2.2 | 55 | 0.242 |
| PH453-06 | -06 | 10 | 3/8 | 9.8 | 0.64 | 16.3 | 3000 | 210 | 12000 | 840 | 2.6 | 65 | 0.303 |
| PH453-08 | -08 | 12 | 1/2 | 13.1 | 0.80 | 20.3 | 3000 | 210 | 12000 | 840 | 3.5 | 90 | 0.446 |
| PH453-10 | -10 | 16 | 5/8 | 16.2 | 0.99 | 25.1 | 3000 | 210 | 12000 | 840 | 3.9 | 100 | 0.736 |
| PH453-12 | -12 | 19 | 3/4 | 19.3 | 1.16 | 29.4 | 3000 | 210 | 12000 | 840 | 4.7 | 120 | 0.994 |
| PH453-16 | -16 | 25 | 1 | 25.9 | 1.48 | 37.5 | 3000 | 210 | 12000 | 840 | 5.9 | 150 | 1.449 |
| PH453-20 | -20 | 31 | 1.1/4 | 32.2 | 1.85 | 47.0 | 3000 | 210 | 12000 | 840 | 8.3 | 210 | 2.822 |
| PH453-24 | -24 | 38 | 1.1/2 | 38.7 | 2.11 | 53.5 | 3000 | 210 | 12000 | 840 | 22.0 | 560 | 3.566 |
| PH453-32 | -32 | 51 | 2 | 51.3 | 2.56 | 65.0 | 3000 | 210 | 12000 | 840 | 27.6 | 700 | 5.132 |
Temperature Range : -40°C to +150°C
Intermittent : +120°C
Impulse Cycles : 2,00,000
*Smooth cover available only upto size 1"
