PH334 - REFRIGERATION HOSE

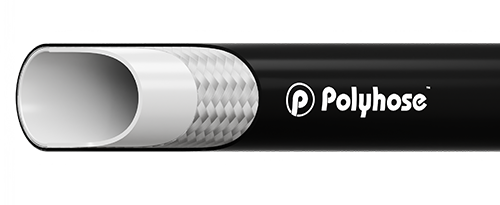

product img

Construction :

Inner tube : Polyamide / Polyester elastomer

Reinforcement : Single braid of synthetic fiber

Cover : Polyester Elastomer / Polyurethane, Black Colour, Pin Pricked

Application : Specially designed to replace capillary copper tubes in industrial refrigeration Lines 42 to 52 bar High savings and cost effective vis a vis copper tube better vibration dampening property compared to copper tube

Note : Special colours available on request
Item
Code
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH334-20 5/64 2.0 0.236 6.0 600 42 3000 210 0.4 10 30
PH334-40 5/32 4.0 0.317 8.1 600 42 3000 210 1.0 25 55
PH334-05 5/16 8.0 0.540 13.7 1523 105 6090 420 1.8 45 120
PH334-06 3/8 9.5 0.600 15.2 1523 105 6090 420 2.2 55 140
PH334-08 1/2 12.7 0.740 18.8 1450 100 5800 400 3.0 77 200
PH334-10 5/8 16.0 0.940 23.9 1160 80 4650 320 4.3 110 300
PH334-12 3/4 19.0 1.075 27.3 1160 80 4650 320 5.5 140 345
PH334-16 1 25.0 1.350 34.3 1000 70 4000 280 8.0 200 481

imgTemperature Range : Continuous: -45°C to +130°C
