PH630 - AIR & WATER DISCHARGE HOSE - 20 BAR

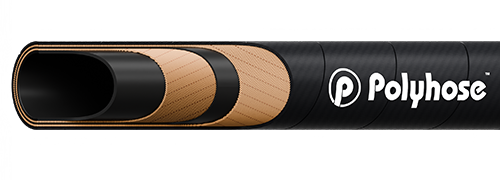

product img

Construction :

Inner tube : Black colour, Synthetic rubber resistant to water

Reinforcement : Plies of synthetic textile cords

Cover : Black colour, Synthetic rubber, wrapped type, abrasion water resistant

Application : Hose designed for air, water & stone dust delivery in underground mines

Item
Code
Dash
Size
ID
OD
OD
WP
BP
W
inch mm inch mm psi bar psi bar kg/m
PH630-16 -16 1 25.0 1.34 34.0 300 20 900 60 0.67
PH630-20 -20 1.1/4 32.0 1.65 42.0 300 20 900 60 0.80
PH630-24 -24 1.1/2 38.0 1.89 48.0 300 20 900 60 0.94
PH630-32 -32 2 51.0 2.44 62.0 300 20 900 60 2.20
PH630-40 -40 2.1/2 63.0 2.99 76.0 300 20 900 60 2.60
PH630-48 -48 3 76.0 3.50 89.0 300 20 900 60 3.10
PH630-56 -56 3.1/2 89.0 4.06 103.0 300 20 900 60 3.70
PH630-64 -64 4 102.0 4.57 116.0 300 20 900 60 4.12
PH630-80 -80 5 127.0 5.59 142.0 300 20 900 60 4.90
PH630-96 -96 6 152.0 6.57 167.0 300 20 900 60 6.70
PH630-128 -128 8 203.0 8.62 219.0 300 20 900 60 8.20

imgTemperature Range : Continuous: -25°C to +70°C
