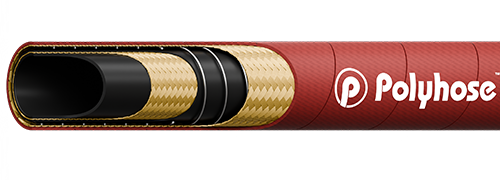

PH475 - STEAM HOSE WITH HELICAL WIRE

product img

Construction :

Inner tube : Black colour, EPDM rubber resistant to high temperature steam

Reinforcement : Double steel wire braids with helical wire

Cover : Red Colour, EPDM rubber resistant to heat and weather

Application : Hardwall hose with steel cord reinforcement for steam at a maximum working pressure of 18 bar, used in chemical industries and industrial application in general, where a particular bending radius is necessary

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH475-32 -32 51 2 51.0 2.72 69.0 260 18 2610 180 27.6 700 2.971
PH475-40 -40 63 2.1/2 63.0 3.39 86.0 260 18 2610 180 33.5 850 4.574
PH475-48 -48 76 3 76.0 3.86 98.0 260 18 2610 180 38.6 980 5.335

imgTemperature Range : Continuous: -40°C to +210°C Steam
