PH262 - 2TE

Applicable Standard : EN 854 - 2TE

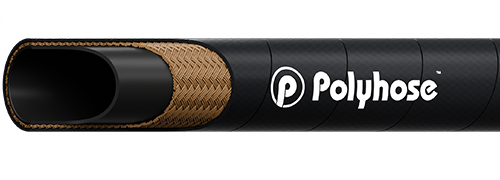

product img

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil and water

Reinforcement : Single Textile braid

Cover : Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application : Very low pressure hydraulic lines 40 to 75 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Stationary equipment and hydraulic systems

Cover Options
PH262 : MSHA
Temperature Usage Options
PH272 : High temperature MSHA cover -40°C to +135°C
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH262-04 04 06 1/4 6.6 0.53 13.4 1090 75 4350 300 1.6 40 0.172
PH262-05 -05 08 5/16 8.1 0.59 14.9 1015 70 3990 275 2.0 50 0.199
PH262-06 -06 10 3/8 9.7 0.65 16.5 945 65 3700 255 2.4 60 0.230
PH262-08 -08 12 1/2 13.0 0.78 19.7 870 60 3410 235 2.8 70 0.298
PH262-10 -10 16 5/8 16.1 0.94 23.9 725 50 2900 200 3.5 90 0.409
PH262-12 -12 19 3/4 19.3 1.06 27.0 655 45 2610 180 4.3 110 0.494
PH262-16 -16 25 1 25.8 1.35 34.4 580 40 2320 160 5.9 150 0.694

imgTemperature Range : Continuous: -40°C to +100°C

*Smooth cover available only upto size 1"
