PH250 - R3

Applicable Standard : SAE J517 - 100R3

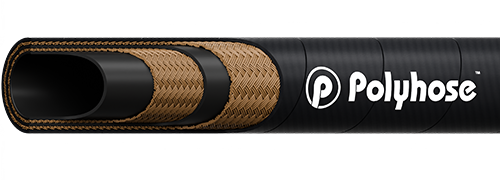

product img

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil and water

Reinforcement : Double fiber braids

Cover : Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application : Low pressure and impulse hydraulic Lines 20 to 105 bar for use with petroleum, synthetic or water based fluids in hydraulic systems . Suitable for Agriculture, Construction & material handling equipment and machineries/systems

Cover Options
PH250 : MSHA
Note : 1-1/2" not covered under SAE 100R3
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH250-03 -03 05 3/16 4.9 0.50 12.7 1525 105 6090 420 3.0 75 0.171
PH250-04 -04 06 1/4 6.5 0.56 14.3 1305 90 5075 350 3.0 75 0.186
PH250-05 -05 08 5/16 8.0 0.69 17.5 1235 85 4930 340 3.9 100 0.272
PH250-06 -06 10 3/8 9.6 0.75 19.0 1160 80 4570 315 3.9 100 0.326
PH250-08 -08 12 1/2 12.9 0.94 23.8 1015 70 4060 280 4.9 125 0.456
PH250-10 -10 16 5/8 16.1 1.06 27.0 945 65 3560 245 5.5 140 0.677
PH250-12 -12 19 3/4 19.2 1.25 31.8 800 55 3045 210 5.9 150 0.734
PH250-16 -16 25 1 25.6 1.50 38.1 580 40 2320 160 8.1 205 0.921
PH250-20 -20 31 1.1/4 32.1 1.75 44.5 435 30 1525 105 9.8 250 0.734
PH250-24 -24 38 1.1/2 38.5 2.00 50.8 290 20 1015 70 15.7 400 1.394

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

Impulse Cycles : 200,000 cycles

*Smooth cover available only upto size 1"
