PH146 - R5
Applicable Standard : SAE J517 - 100R5

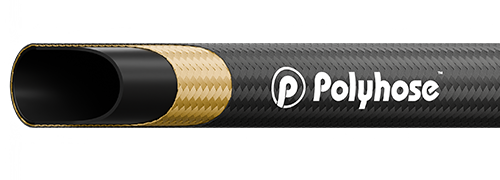

Construction
Inner tube
Black colour, synthetic rubber resistant to oil and water
Reinforcement
Single steel wire braid
Cover
Black colour, single braid of textile fiber
Application
Medium pressure hydraulic lines 25 to 210 bar for use with fluids in hydraulic systems can also be used in air and water. Suitable for Agriculture, Earthmoving & material handling equipment and machineries / systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH146-04 | -04 | 05 | 3/16 | 5.1 | 0.52 | 13.2 | 3045 | 210 | 12180 | 840 | 3.0 | 75 | 0.228 |
| PH146-05 | -05 | 06 | 1/4 | 6.8 | 0.58 | 14.8 | 3045 | 210 | 12180 | 840 | 3.3 | 85 | 0.281 |
| PH146-06 | -06 | 08 | 5/16 | 8.3 | 0.68 | 17.15 | 2320 | 160 | 9135 | 630 | 3.9 | 100 | 0.343 |
| PH146-08 | -08 | 10 | 13/32 | 10.7 | 0.77 | 19.45 | 2030 | 140 | 8120 | 560 | 4.5 | 115 | 0.405 |
| PH146-10 | -10 | 12 | 1/2 | 13.2 | 0.92 | 23.4 | 1815 | 125 | 7105 | 490 | 5.5 | 140 | 0.549 |
| PH146-12 | -12 | 16 | 5/8 | 16.4 | 1.08 | 27.4 | 1525 | 105 | 6090 | 420 | 6.5 | 165 | 0.702 |
| PH146-16 | -16 | 22 | 7/8 | 22.7 | 1.24 | 31.4 | 870 | 60 | 3265 | 225 | 7.3 | 185 | 0.702 |
| PH146-20 | -20 | 30 | 1.1/8 | 29.2 | 1.50 | 38.1 | 655 | 45 | 2540 | 175 | 9.1 | 230 | 0.905 |
| PH146-24 | -24 | 35 | 1.3/8 | 35.5 | 1.75 | 44.45 | 510 | 35 | 2030 | 140 | 10.4 | 265 | 1.295 |
| PH146-32 | -32 | 45 | 1.13/16 | 46.6 | 2.22 | 56.4 | 365 | 25 | 1450 | 100 | 13.2 | 335 | 1.572 |
| PH146-32 | -32 | 51 | 2 | 51.0 | 2.48 | 63.0 | 365 | 25 | 1450 | 100 | 24.0 | 610 | 1.819 |
| PH146-40 | -40 | 60 | 2.3/8 | 61.1 | 2.87 | 73.0 | 365 | 25 | 1450 | 100 | 24.0 | 610 | 2.320 |
| PH146-40 | -40 | 63 | 2.1/2 | 63.5 | 2.95 | 75.0 | 510 | 35 | 2030 | 140 | 29.5 | 750 | 2.220 |
| PH146-48 | -48 | 76 | 3 | 76.0 | 3.50 | 89.0 | 510 | 35 | 2030 | 140 | 35.4 | 900 | 2.745 |
Temperature Range : Continuous: -40°C to +100°C for air application temp should be max +80°C and for water +90°C
