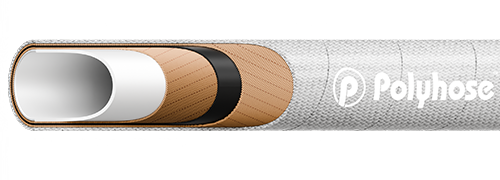

PH606 - STEEL MILL WATER DELIVERY HOSE WITH FIBER GLASS COVER

product img

Construction :

Inner tube : White colour, EPDM Rubber resistant to hot water

Reinforcement : Plies of synthetic textile cords

Cover : Fiber glass cloth cover

Application : Water Delivery Hose for application in Steel Mills and Glass industries. The Fiber Glass cover resists occasional contact of molten particles and protection against flame

Item
Code
Dash
Size
ID
OD
OD
WP
BP
W
inch mm inch mm psi bar psi bar kg/m
PH606-16 -16 1 25.0 1.54 39.0 150 10 435 30 0.75
PH606-20 -20 1.1/4 32.0 1.81 46.0 150 10 435 30 1.10
PH606-24 -24 1.1/2 38.0 2.13 54.0 150 10 435 30 1.55
PH606-32 -32 2 51.0 2.72 69.0 150 10 435 30 1.71
PH606-40 -40 2.1/2 64.0 3.39 86.0 150 10 435 30 2.90
PH606-48 -48 3 76.0 3.86 98.0 150 10 435 30 3.40
PH606-64 -64 4 102.0 4.88 124.0 150 10 435 30 4.87

imgTemperature Range : Continuous: -40°C to +130°C Outside Temperature: Up to 500°C
