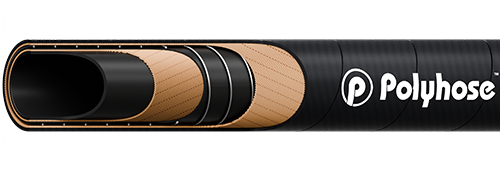

PH604 - WATER SUCTION & DISCHARGE HOSE W.P. 20 BAR
Construction :
Inner tube : Black colour, Synthetic rubber resistant to water
Reinforcement : Plies of synthetic textile cords with steel helix
Cover : Black colour, Synthetic rubber, wrapped type, abrasion water resistant
Application : Mandrel built heavy duty water suction and discharge hose for handling of water, inert fluid, sewerages, waste water, where optimum flexibility is required
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH604-12 | -12 | 3/4 | 19.0 | 1.14 | 29.0 | 300 | 20 | 900 | 60 | 0.70 |
| PH604-16 | -16 | 1 | 25.0 | 1.38 | 35.0 | 300 | 20 | 900 | 60 | 0.85 |
| PH604-20 | -20 | 1.1/4 | 32.0 | 1.65 | 42.0 | 300 | 20 | 900 | 60 | 0.99 |
| PH604-24 | -24 | 1.1/2 | 38.0 | 1.97 | 50.0 | 300 | 20 | 900 | 60 | 1.42 |
| PH604-32 | -32 | 2 | 51.0 | 2.56 | 65.0 | 300 | 20 | 900 | 60 | 2.04 |
| PH604-40 | -40 | 2.1/2 | 64.0 | 3.07 | 78.0 | 300 | 20 | 900 | 60 | 2.65 |
| PH604-48 | -48 | 3 | 76.0 | 3.54 | 90.0 | 300 | 20 | 900 | 60 | 3.11 |
| PH604-56 | -56 | 3.1/2 | 89.0 | 4.09 | 104.0 | 300 | 20 | 900 | 60 | 3.90 |
| PH604-64 | -64 | 4 | 102.0 | 4.65 | 118.0 | 300 | 20 | 900 | 60 | 4.57 |
| PH604-80 | -80 | 5 | 127.0 | 5.63 | 143.0 | 300 | 20 | 900 | 60 | 6.29 |
| PH604-96 | -96 | 6 | 152.0 | 6.89 | 175.0 | 300 | 20 | 900 | 60 | 9.40 |
| PH604-128 | -128 | 8 | 203.0 | 9.17 | 233.0 | 300 | 20 | 900 | 60 | 14.40 |
Temperature Range : Continuous: -25°C to +70°C
