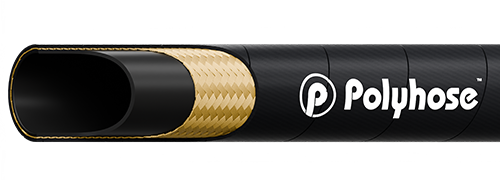

PH290 - PILOT HOSE

product img

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil and water

Reinforcement : Single steel wire braid

Cover : Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in Wrap and Smooth finish*

Application : Medium Pressure hydraulic lines 105 bar and requires compact outer dia. For use with petroleum based fluids, water based fluids in Hydraulic systems. Suitable for Agricultural, Earth Moving & material handling equipment and machineries/systems

Cover Options
PH290 : MSHA
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH290-04 -04 06 1/4 6.4 0.44 11.2 1525 105 6020 415 1.2 30 0.169
PH290-05 -05 08 5/16 8.0 0.50 12.8 1525 105 6020 415 1.4 35 0.193
PH290-06 -06 10 3/8 9.5 0.56 14.3 1525 105 6020 415 2.0 50 0.272
PH290-08 -08 12 1/2 12.7 0.69 17.4 1525 105 6020 415 2.4 60 0.294

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

*Smooth cover available only upto size 1"
