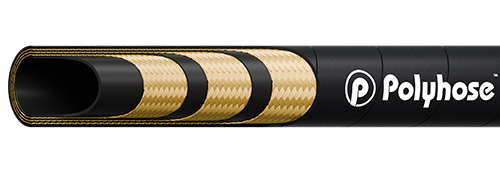

PH276 - TRIFLEX

product img

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil

Reinforcement : Three high tensile steel braids

Cover : Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application : High pressure for forest industry. Compatible with mineral, vegetable oils, glycol, polyglycol based, synthetic ester based oils, oils in water emulsion

Cover Options
PH276: MSHA
Item
Code
Dash
Size
DN
ID
RI OD
OD
OD
WP
BP
BR/r
W
inch mm inch mm inch mm psi bar psi bar inch mm kg/m
PH276-06 -06 10 3/8 9.5 0.70 17.7 0.84 21.3 7250 500 29000 2000 7.09 180 0.832
PH276-08 -08 12 1/2 12.7 0.81 20.5 0.96 24.3 6815 470 27260 1880 9.06 230 1.017
PH276-10 -10 16 5/8 16.0 0.96 24.4 1.10 28.0 5945 410 23780 1640 9.84 250 1.199
PH276-12 -12 19 3/4 19.0 1.09 27.8 1.24 31.5 5440 375 21750 1500 11.81 300 1.457
PH276-16 -16 25 1 25.4 1.37 34.7 1.52 38.7 4570 315 18270 1260 13.39 340 1.902

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

*Smooth cover available only upto size 1"
