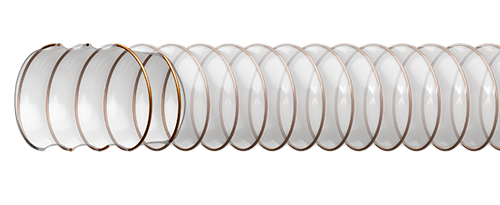

POLYURETHANE DUCTING - HEAVY C
Construction
Application
Suction & transport of abrasive solids, liquids, fine grained particles, such as dust and powder. Used in extraction of oil mist, paper & textile fibers
Wall
Polyester Polyurethane
Spiral
Spring Steel Wire
Properties
Extremely flexible, Light in Weight, Microbe - resistance, Good chemical resistance, Good UV and ozone resistance
Note : Length upto 20 meters. Also special sizes are available on request |
Item Code |
ID
|
WT
|
VP
|
BR/r
|
W
|
|
inch | mm | mm | bar | mm | kg/m | |
PH032120AANT | 1.1/4 | 32 | 1.20 | 0.45 | 48 | 0.426 |
PH038120AANT | 1.1/2 | 38 | 1.20 | 0.45 | 55 | 0.501 |
PH040120AANT | 40 | 1.20 | 0.45 | 60 | 0.527 | |
PH045120AANT | 45 | 1.20 | 0.40 | 68 | 0.590 | |
PH051120AANT | 2 | 51 | 1.20 | 0.40 | 75 | 0.667 |
PH060120AANT | 60 | 1.20 | 0.35 | 90 | 0.780 | |
PH063120AANT | 2.1/2 | 63 | 1.20 | 0.35 | 95 | 0.890 |
PH065120AANT | 65 | 1.20 | 0.35 | 98 | 0.917 | |
PH070120AANT | 70 | 1.20 | 0.35 | 105 | 0.986 | |
PH076120AANT | 3 | 76 | 1.20 | 0.30 | 113 | 1.069 |
PH080120AANT | 80 | 1.20 | 0.30 | 120 | 1.140 | |
PH090120AANT | 3.1/2 | 90 | 1.20 | 0.30 | 135 | 1.194 |
PH102120AANT | 4 | 102 | 1.20 | 0.30 | 150 | 1.350 |
PH110120AANT | 110 | 1.20 | 0.25 | 170 | 1.454 | |
PH120120AANT | 120 | 1.20 | 0.25 | 180 | 1.584 | |
PH127120AANT | 5 | 127 | 1.20 | 0.20 | 185 | 1.675 |
PH130120AANT | 130 | 1.20 | 0.20 | 195 | 1.714 | |
PH140120AANT | 5.1/2 | 140 | 1.20 | 0.20 | 210 | 1.800 |
PH150120AANT | 150 | 1.20 | 0.20 | 225 | 1.926 | |
PH152120AANT | 6 | 152 | 1.20 | 0.15 | 230 | 1.958 |
PH160120AANT | 160 | 1.20 | 0.15 | 240 | 2.218 | |
PH180120AANT | 7 | 180 | 1.20 | 0.12 | 270 | 2.490 |
PH200120AANT | 7.7/8 | 200 | 1.20 | 0.12 | 300 | 2.763 |
PH220120AANT | 220 | 1.20 | 0.11 | 338 | 2.956 | |
PH250120AANT | 10 | 250 | 1.20 | 0.10 | 375 | 3.353 |
PH279120AANT | 11 | 279 | 1.20 | 0.10 | 400 | 3.738 |
PH300120AANT | 12 | 300 | 1.20 | 0.09 | 450 | 4.017 |
PH350120AANT | 14 | 350 | 1.20 | 0.09 | 525 | 4.109 |
PH400120AANT | 16 | 400 | 1.20 | 0.08 | 600 | 4.691 |
PH450120AANT | 18 | 450 | 1.20 | 0.06 | 675 | 5.085 |
PH500120AANT | 20 | 500 | 1.20 | 0.04 | 750 | 5.646 |
PH600120AANT | 24 | 600 | 1.20 | 0.03 | 840 | 6.770 |
Temperature Range : Continuous: -40°C to +90°C
