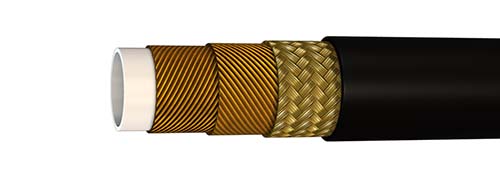

PH902P - 2 SPIRALS OF HIGH TENSILE STEEL WIRE, 1 BRAID OF STEEL WIRE

product img

Construction :

Inner tube : Polyamide (PA)

Reinforcement : 2 Spirals of high-tensile steel wire, 1 braid of steel wire

Cover : Polyurethane (PUR) - Black

Application : Hydraulics: Hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools), Oil and Gas: Grease injection, control of subsea hydraulic components

Note : Production related variations of Burst Pressure of upto 10% possible. Indicated working pressure refers to hose only. Depending on the end connectors used, the permited working pressure of hose assembly may be less
Item
Code
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm mm psi bar psi bar mm g/m
PH902P-025 4 5/32 4.0 9.8 17400 1200 43500 3000 65 185
PH902P-04 6 1/4 6.2 12.9 16240 1120 40600 2800 95 300

imgTemperature Range : Continuous: -30°C to +60°C
