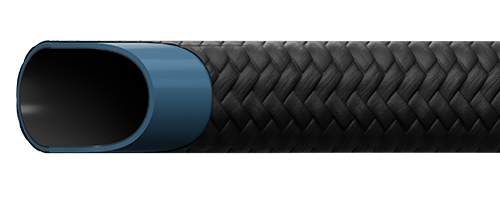

PH765 - MEDIUM PRESSURE FLUORO - COMP HOSE

product img

Construction

Inner tube

Polytetrafluoroethylene (PTFE) - Conductive

Reinforcement

One or two braids of Fiber Glass Yarn

Application

P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Combination of the fiberglass outer braid and PTFE liner, make the hose essentially non-flammable. Ultimate fuel compatibility and Formable

Item
Code
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH765-04 1/4 6.40 0.428 10.87 800 54.0 3200 216 2.8 70 115
PH765-05 5/16 8.00 0.499 12.68 800 54.0 3200 216 3.0 76 130
PH765-06 3/8 9.53 0.605 15.37 800 54.0 3200 216 3.3 83 165
PH765-07 7/16 10.90 0.663 16.84 800 54.0 3200 216 3.8 96 175
PH765-08 1/2 13.00 0.769 19.53 800 54.0 3200 216 5.3 134 185

imgTemperature Range : Continuous: -54°C to +260°C
