PH414 - 4000 PSI LOW TEMPERATURE

Applicable Standard : ISO 18752 - AC

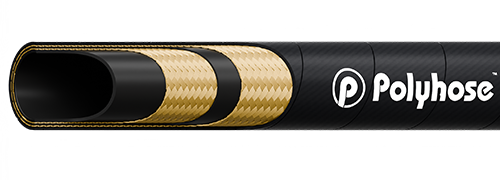

product img

Construction

Inner tube

Black colour, synthetic rubber resistant to oil and water

Reinforcement

Single steel wire braid (DN06), Double steel wire braids (DN08 - 19)

Cover

Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. smooth *and wrap finish applicable only for wire braided hose

Application

Constant pressure hydraulic Lines 280 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH414-04 -04 06 1/4 6.7 0.47 12.0 4000 280 16000 1120 2.0 50 0.186
PH414-05 -05 08 5/16 8.2 0.59 14.9 4000 280 16000 1120 2.2 55 0.366
PH414-06 -06 10 3/8 9.8 0.67 17.0 4000 280 16000 1120 2.6 65 0.466
PH414-08 -08 12 1/2 13.1 0.80 20.4 4000 280 16000 1120 3.5 90 0.624
PH414-10 -10 16 5/8 16.2 0.93 23.5 4000 280 16000 1120 3.9 100 0.736
PH414-12 -12 19 3/4 19.3 1.09 27.7 4000 280 16000 1120 4.7 120 0.901

imgTemperature Range : -55°C to +100°C

Intermittent : +120°C

Impulse Cycles : 2,00,000

*Smooth cover available only upto size 1"
