PH404 - 4000 PSI HARD - X MSHA

Applicable Standard : ISO 18752 - AC

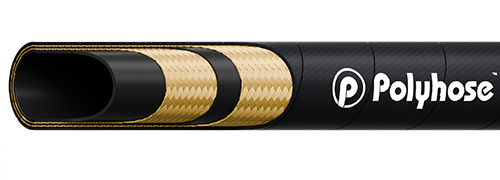

product img

Construction

Inner tube

Black colour, synthetic rubber resistant to oil and water

Reinforcement

Single steel wire braid (DN06), Double steel wire braids (DN08 - 19)

Cover

Hard-X Black, extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish*

Application

Constant pressure hydraulic Lines 280 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH404-04 -04 06 1/4 6.7 0.47 12.0 4000 280 16000 1120 2.0 50 0.186
PH404-05 -05 08 5/16 8.2 0.59 14.9 4000 280 16000 1120 2.2 55 0.366
PH404-06 -06 10 3/8 9.8 0.67 17.0 4000 280 16000 1120 2.6 65 0.466
PH404-08 -08 12 1/2 13.1 0.80 20.4 4000 280 16000 1120 3.5 90 0.624
PH404-10 -10 16 5/8 16.2 0.93 23.5 4000 280 16000 1120 3.9 100 0.736
PH404-12 -12 19 3/4 19.3 1.09 27.7 4000 280 16000 1120 4.7 120 0.901

imgTemperature Range : -40°C to +100°C

Intermittent : +120°C

*Smooth cover available only upto size 1"
