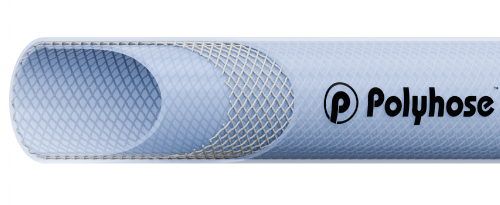

PH367 - P.V.C BRAIDED HOSE

product img

Construction

Inner tube

Plasticized PVC, Transparent

Reinforcement

Single braid of Synthetic fiber

Cover

Thermo-compound, Transparent

Application

Factory water supply and drainage equipment. Air and water piping for industrial equipment. special rock drill hose available in regular & heavy duty type

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH367-04 -04 06 1/4 6.5 0.492 12.5 435 30 1740 120 1.2 30 125
PH367-05 -05 08 5/16 8.0 0.571 14.5 435 30 1300 90 1.4 35 150
PH367-06 -06 10 3/8 9.5 0.630 16.0 435 30 1300 90 1.8 45 180
PH367-08 -08 12 1/2 12.7 0.795 20.2 360 25 1090 75 2.2 55 230
PH367-10 -10 16 5/8 16.0 0.945 24.0 320 22 1090 75 3.3 85 320
PH367-12 -12 20 3/4 19.0 1.063 27.0 320 22 1090 75 4.3 110 380
PH367-16 -16 25 1 25.4 1.299 33.0 220 15 725 50 5.3 135 490

imgTemperature Range : Continuous: -10°C to +60°C
