PH307 - SEWER JET - 3600 PSI

product img

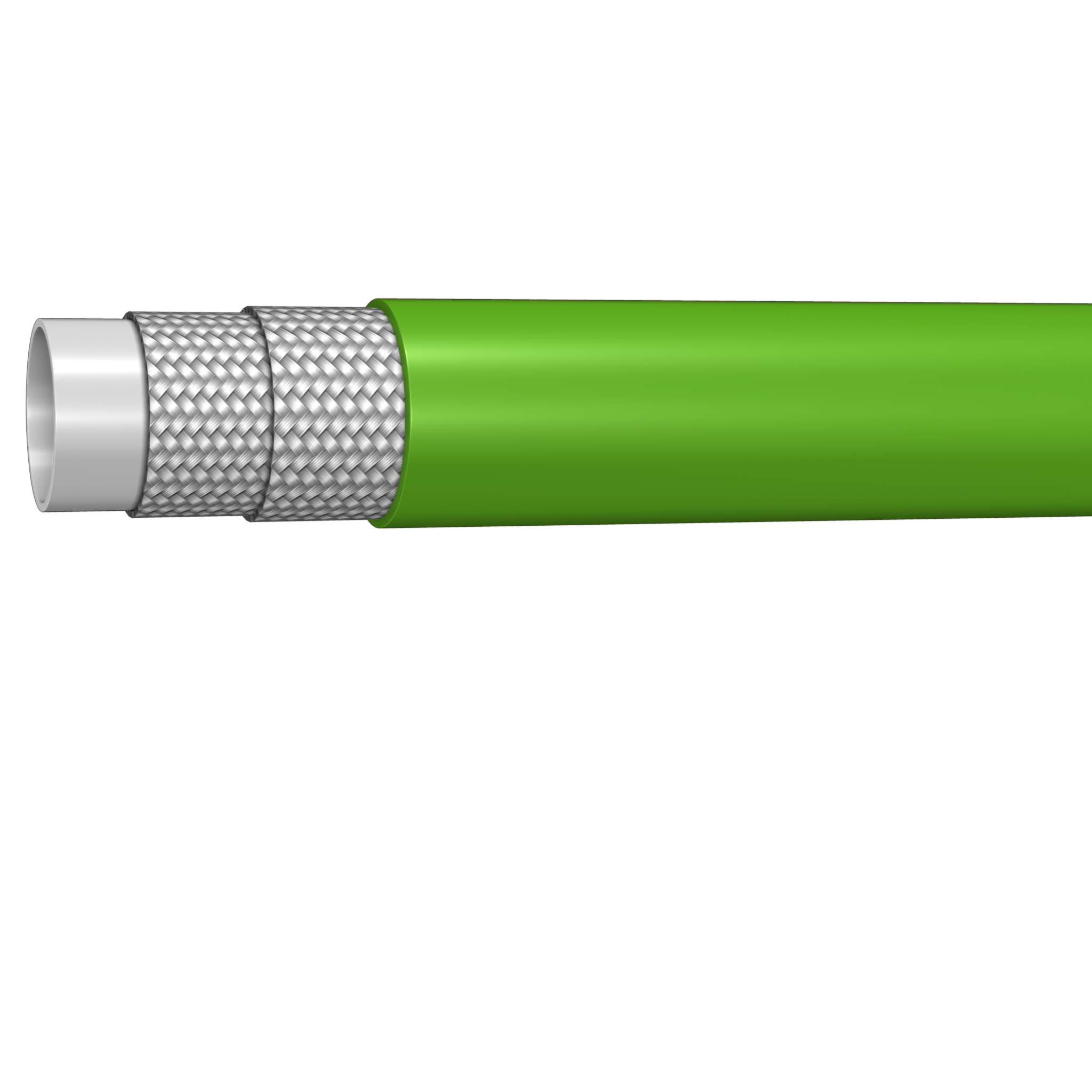

Construction :

Inner tube : Special Thermoplastic Elastomer

Reinforcement : Two braids of Synthetic Fiber and one special braid of synthetic fiber armoring

Cover : Polyurethane, Green Colour

Application : Three braids of reinforcement for the extra pressure you need. Bonded construction to resist kinking. Design includes "armoring", enhancing flexibility and wear life. Cover material specially compounded to resist microbiological degradation. Available in long lenghts

Note : Special colours available on request
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH307-12 -12 20 3/4 19.0 1.180 30.0 3600 250 9000 625 4.9 125 985
PH307-16 -16 25 1 25.4 1.500 38.1 3600 250 9000 625 7.3 185 1050

imgTemperature Range : Continuous: -40°C to +60°C
