PH295 - R19

Applicable Standard : SAE J517 - 100R19

product img

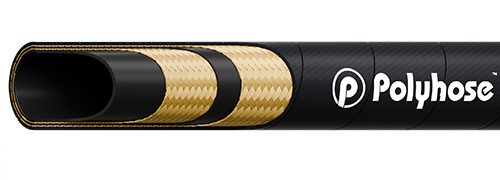

Construction :

Inner tube : Black colour, synthetic rubber resistant to oil and water

Reinforcement : Single or Double steel wire braids

Cover : Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone.

Application : Compact constant pressure hydraulic lines 280 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & Material handling equipments / systems

Cover Options
PH295 : MSHA
PH229 : HARDX MSHA
PH222 : ABRAZONX MSHA
Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH295-04 -04 06 1/4 6.7 0.47 12.0 4060 280 16240 1120 2.0 50 0.186
PH295-05 -05 08 5/16 8.2 0.59 14.9 4060 280 16240 1120 2.2 55 0.366
PH295-06 -06 10 3/8 9.8 0.67 17.1 4060 280 16240 1120 2.6 65 0.466
PH295-08 -08 12 1/2 13.1 0.80 20.4 4060 280 16240 1120 3.5 90 0.624
PH295-10 -10 16 5/8 16.2 0.94 24.0 4060 280 16240 1120 3.9 100 0.745
PH295-12 -12 19 3/4 19.3 1.09 27.7 4060 280 16240 1120 4.7 120 0.901

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +121°C

Impulse Cycles : 200,000 cycles
