PH289 - 4SH ABRAZON - X MSHA

Applicable Standard : EN 856 - 4SH / ISO 3862

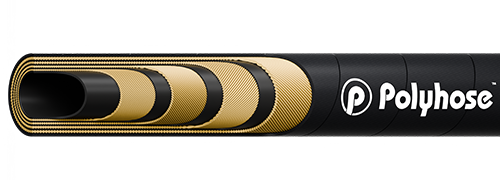

product img

Construction

Inner tube

Black colour, Synthetic rubber resistant to oil and water

Reinforcement

Four high tensile steel wire spirals

Cover

Abrazon-X Black, Exceptionally abrasion, oil, ozone resistant synthetic rubber sheathed with layer of UHMW-PE foil.

Application

Extra high pressure Hydraulic Lines 250 to 420 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipment and machineries/systems

Item
Code
Dash
Size
DN
ID
RI OD
OD
OD
WP
BP
BR/r
W
inch mm inch mm inch mm psi bar psi bar inch mm kg/m
PH289-12 -12 19 3/4 19.4 1.12 28.4 1.27 32.2 6090 420 24360 1680 11.02 280 1.605
PH289-16 -16 25 1 25.9 1.40 35.5 1.52 38.7 5510 380 22040 1520 13.39 340 2.277
PH289-20 -20 31 1.1/4 32.5 1.65 41.9 1.79 45.5 5075 350 20300 1400 18.11 460 2.671
PH289-24 -24 38 1.1/2 38.7 1.92 48.8 2.11 53.5 4350 300 17400 1200 22.05 560 3.566
PH289-32 -32 51 2 51.3 2.49 63.2 2.68 68.1 3625 250 14500 1000 27.56 700 5.132

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

Impulse Cycles : 400,000 cycles
