PH271 - 1TE HIGH TEMPERATURE MSHA

Applicable Standard : EN 854 - 1TE

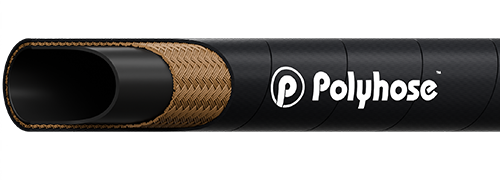

product img

Construction

Inner tube

Black colour, synthetic rubber resistant to oil and water

Reinforcement

Single Textile Braid

Cover

Black colour, synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application

Very low pressure hydraulic lines 15 to 25 bar for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural, Stationary equipment and hydraulic systems

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH271-04 -04 06 1/4 6.6 0.49 12.4 365 25 1450 100 1.8 45 0.131
PH271-05 -05 08 5/16 8.1 0.55 13.9 290 20 1160 80 2.6 65 0.150
PH271-06 -06 10 3/8 9.0 0.61 15.5 290 20 1160 80 3.0 75 0.181
PH271-08 -08 12 1/2 13.0 0.74 18.7 290 20 945 65 3.5 90 0.222
PH271-10 -10 16 5/8 16.1 0.90 22.9 290 20 945 65 4.5 115 0.327
PH271-12 -12 19 3/4 19.3 1.04 26.3 220 15 725 50 5.3 135 0.381
PH271-16 -16 25 1 25.8 1.34 34.0 220 15 725 50 5.9 150 0.643

imgTemperature Range : -40°C to +135°C

*Smooth cover available only upto size 1"
