PH270 - 2SC ULTRA HIGH TEMPERATURE MSHA

Applicable Standard : EN 857 - 2SC / SAE 100R16 / ISO 11237 -1

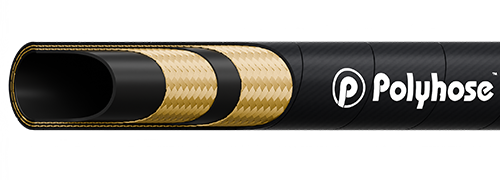

product img

Construction

Inner tube

Black Color, Synthetic rubber resistant to oil and water

Reinforcement

Double steel wire braids

Cover

Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*

Application

High Pressure Hydraulic Lines 125 to 400 bar requiring compact outer dia and high flexibility for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems

Note : 1.1/4" 1SC not covered under EN857
Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH270-04 -04 06 1/4 6.7 0.52 13.2 5800 400 23200 1600 2.0 50 0.323
PH270-05 -05 08 5/16 8.2 0.59 14.9 5075 350 20300 1400 2.2 55 0.366
PH270-06 -06 10 3/8 9.8 0.67 17.1 4785 330 19140 1320 2.6 65 0.466
PH270-08 -08 12 1/2 13.1 0.80 20.4 3990 275 15950 1100 3.5 90 0.624
PH270-10 -10 16 5/8 16.3 0.93 23.5 3625 250 14500 1000 3.9 100 0.736
PH270-12 -12 19 3/4 19.3 1.10 28 3120 215 12470 860 4.7 120 0.932
PH270-16 -16 25 1 25.9 1.41 35.7 2395 165 9570 660 5.9 150 1.324
PH270-20 -20 31 1.1/4 32.2 1.73 43.9 1815 125 7250 500 8.3 210 1.750
PH270-24 -24 38 1.1/2 38.7 1.89 48.0 1450 100 5800 400 9.8 250 1.760
PH270-32 -32 51 2 51.3 2.43 61.6 1305 50 5220 360 11.8 300 2.300

imgTemperature Range : -40°C to +150°C

Intermittent : +120°C

Impulse Cycles : 200,000; Tested upto 400,000 cycles,upto 1"I.D

*Smooth cover available only upto size 1"
