PH152 - HIGH PRESSURE HYDRAULIC HOSE - R8 (NON CONDUCTIVE)

Applicable Standard : SAE 100R8 / DIN EN ISO 3949

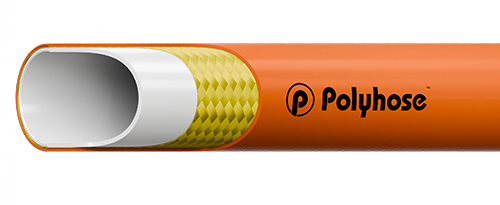

product img

Construction

Inner tube

Thermoplastic Elastomer

Reinforcement

One or more Braids of Aramid Fiber

Cover

Polyurethane, Orange Colour, Non Pin pricked

Application

High Pressure hydraulic lines 100 to 420 bar compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in hydraulic system. Suitable for Agricultural machinery, Earthmoving, safety, Rescue and material handling equipment, Also suitable for industrial gases and other applications. please consult manufacturer

Item
Code
Dash
Size
DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm g/m
PH152-02 -02 03 1/8 3.2 0.320 8.1 6000 420 24000 1680 1.0 25 57
PH152-03 -03 05 3/16 4.8 0.405 10.3 5000 350 20000 1400 1.0 25 87
PH152-04 -04 06 1/4 6.4 0.490 12.4 5000 350 20000 1400 1.3 32 118
PH152-05 -05 08 5/16 8.0 0.560 14.2 4350 300 17400 1200 1.8 45 147
PH152-06 -06 10 3/8 9.5 0.620 15.7 4000 280 16000 1120 2.2 55 170
PH152-08 -08 12 1/2 12.7 0.760 19.3 3500 245 14000 980 3.0 77 219
PH152-10 -10 16 5/8 16.0 0.910 23.1 2900 200 11600 800 4.3 110 295
PH152-12 -12 20 3/4 19.0 1.040 26.4 2300 165 9200 660 5.5 140 372
PH152-16 -16 25 1 25.4 1.310 33.3 2000 140 8000 560 8.0 200 511
PH152-20 -20 32 1.1/4 31.8 1.654 42.0 1500 100 6000 400 14.0 350 750

imgTemperature Range : Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
